AN TUNG gunboat (1923/1945)

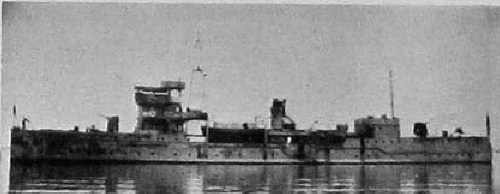

An Tung 1947
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 丹東 [An Tung] (ex-安宅 [Ataka], ex-Nakoso) | Yokohama Co, Japan | 8.1921 | 11.4.1922 | 8.1923 // 8.1945 | deleted 1970s |
Technical data
| Displacement standard, t | 886 |
|---|---|
| Displacement full, t | 1094 |
| Length, m | 67.1 pp 71.7 oa |
| Breadth, m | 9.78 |
| Draught, m | 2.26 |
| No of shafts | 2 |
| Machinery | 2 VTE, 2 Kampon boilers |
| Power, h. p. | 1700 |
| Max speed, kts | 16 |
| Fuel, t | coal 235 |
| Armament | 1 x 1 - 120/45 3-shiki, 2 x 1 - 76/40 11-shiki, 4 x 2 - 13.2/76, 4 x 1 - 7.7/80, 1 DCT |
| Complement | 118 |
Standard scale images
An Tung 1945
Graphics
An Tung 1947
Project history
Former Japanese Ataka, surrendered to Allies in August, 1945 at Shanghai and captured by Chinese.
Modernizations
early 1950s: - 1 x 1 - 120/45, 1 x 2 - 13.2/76, 1 DCT; + 5 x 1 - 25/60 96-shiki
Naval service
No significant events.
