CHUNG'AN coastal minesweepers (projects 082, 082I, 1988-2007)

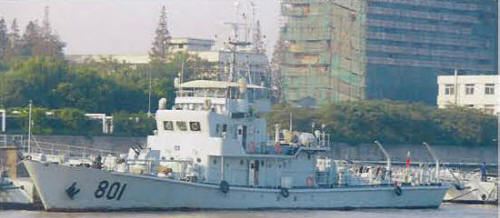

Xiangshan 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate | Modification |
|---|---|---|---|---|---|---|---|---|
| 长安 [Chung'an] | 4422, 2004- 800 | Jiujiang SY | 1984 | 1988 | in service (2019) | Type 082 | ||
| 象山 [Xiangshan] | 4423, 2004- 801 | Jiujiang SY | 1988 | in service (2019) | Type 082 | |||
| 崇明 [Chongming] | 4424, 2004- 802 | Jiujiang SY | 1988 | in service (2019) | Type 082 | |||
| 奉化 [Fenghua] | 4425, 2004- 803 | Jiujiang SY | 1988 | in service (2019) | Type 082 | |||
| 枝江 [Zhijiang] | 806 | Jiujiang SY | 1988 | in service (2019) | Type 082I | |||
| 海晏 [Haiyan] | 807 | Jiujiang SY | 2004-07 | in service (2019) | Type 082I | |||
| 海门 [Haimen] | 816 | Jiujiang SY | 2004-07 | in service (2019) | Type 082I | |||
| 温岭 [Wenling] | 817 | Jiujiang SY | 2004-07 | in service (2019) | Type 082I | |||
| 820 | Jiujiang SY | 2004-07 | in service (2019) | Type 082I | ||||
| 821 | Jiujiang SY | 2004-07 | in service (2019) | Type 082I | ||||
| 822 | Jiujiang SY | 2004-07 | in service (2019) | Type 082I | ||||
| 823 | Jiujiang SY | 2004-07 | in service (2019) | Type 082I | ||||
| 824 | Jiujiang SY | 2004-07 | in service (2019) | Type 082I | ||||
| 华容 [Huarong] | 825 | Jiujiang SY | 1988 | in service (2019) | Type 082I | |||
| 榕江 [Rongjian] | 826 | Jiujiang SY | 1988 | in service (2019) | Type 082I | |||
| 琼海 [Qionghai] | 827 | Jiujiang SY | 1988 | in service (2019) | Type 082I |
Technical data
| Displacement standard, t | 305 |
|---|---|
| Displacement full, t | 310 |
| Length, m | 44.8 |
| Breadth, m | 6.20 |
| Draught, m | 2.27 |
| No of shafts | 2 |
| Machinery | 2 12-180 diesels |
| Power, h. p. | 2200 |
| Max speed, kts | 15.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(8) |
| Armament | 4422: 2 x 2 - 25/80 type 61, mines, type 316 mechanical sweeping gear others: 2 x 2 - 25/80 type 61, mines, type 316 mechanical sweeping gear, type 317 magnetic sweeping gear, type 318 acoustic sweeping gear, type 319 infrasonic sweeping gear |
| Electronic equipment | type 753 radar, side-scanning minehunting sonar |
| Complement | 28 |
Standard scale images
Zhuji 2010
Graphics
Xiangshan 2008
Project history
Coastal minesweepers, steel-hulled. Can be used as command ship for Type 312 minesweeping drones.
Modernizations
None.
Naval service
No significant events.
