ZHANGJIAGANG minehunters/minesweepers (project 081, 2007)

XIAOYI minehunters/minesweepers (project 081A, 2012-2014)

Zhangjiagang 2015

Xiaoyi 2015

Name No Builder Laid down Launched Comp Fate
Type 081
張家港 <Zhangjiagang> 805 Qiuxin, Shanghai   2006 6/3/2007 in service (2017)
靖江 <Jingjiang> 810 Qiuxin, Shanghai     9/11/2007 in service (2017)
瀏陽 <Liuyang> 839 Qiuxin, Shanghai   12/11/2006 29/7/2007 in service (2017)
瀘溪 <Luxi> 840 Qiuxin, Shanghai   15/5/2006 29/7/2007 in service (2017)
Type 081A
孝義 <Xiaoyi> 841 Jiangnan, Shanghai     24/2/2012 in service (2017)
台山 <Taishan> 842 Jiangnan, Shanghai     6/8/2012 in service (2017)
常熟 <Changshou> 843 Wuchang, Wuhan   2012 13/5/2013 in service (2017)
鹤山 <Heshan> 844 Jiangnan, Shanghai   27/9/2012 10/10/2013 in service (2017)
青州 <Qingzhou> 845 Jiangnan, Shanghai     26/1/2014 in service (2017)
禹城 <Yucheng> 846 Jiangnan, Shanghai   9/2013 10/10/2014 in service (2017)



Displacement standard, t



Displacement full, t

Type 081: 996

Type 081A: 1200

Length, m

Type 081: 65.0

Type 081A: 67.8

Breadth, m

10.0

Draught, m



No of shafts

2

Machinery

2 diesels

Power, h. p.



Max speed, kts

16

Fuel, t

diesel oil

Endurance, nm(kts)



Armament

Type 081: 1 x 2 - 37/63 type 76, mines, 2 Pinguin B3 minehunting USV, type 316 mechanical sweeping gear, type 317 magnetic sweeping gear, type 318 acoustic sweeping gear, type 319 infrasonic sweeping gear

Type 081: 1 x 1 - 30/77 PJ-14, mines, 2 Pinguin B3 minehunting USV, type 316 mechanical sweeping gear, type 317 magnetic sweeping gear, type 318 acoustic sweeping gear, type 319 infrasonic sweeping gear

Sensors

radar, side-scanning minehunting sonar

Complement





Ship project history: Minehunters, development of Russian project 254.

Modernizations: None.

Naval service: No significant events.

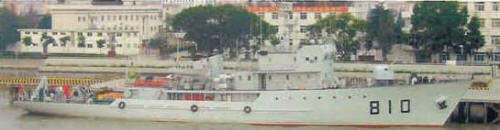

Jingjiang 2008
