LIAOYANG minelayer (project 918, 1988)

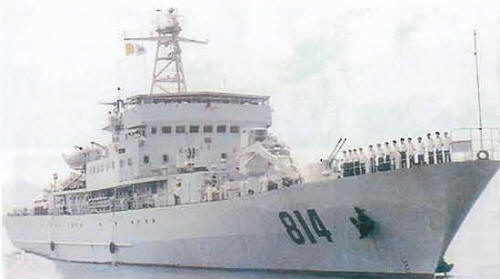

Liaoyang 2002
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| 辽阳 [Liaoyang], 11.2012- 海监 112 [Haijian 112], 2013- 海监 1212 [Haijing 1212] | 814, 11.2012- 112, 2013- 1212 | Dalian SY | 1984 | 1988 | to Marine Surveillance 11.2012, to Coast Guard 2013, in service (2019) |
Technical data
| Displacement standard, t | 2300 |
|---|---|
| Displacement full, t | 2418 |
| Length, m | 93.8 |
| Breadth, m | 14.4 |
| Draught, m | 3.88 |
| No of shafts | 2 |
| Machinery | 4 SEMT-Pielstick 12PA6V-280 diesels |
| Power, h. p. | 6400 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 7000(14) |
| Armament | 4 x 2 - 37/63 type 76, 300 mines |
| Electronic equipment | radar |
| Complement | 200 |
Standard scale images

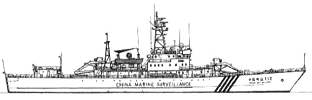

Haijing 1212 2015
Graphics
Liaoyang 2002
Project history
Sole minelayer built for PLAN, can also be used as mine countermeasures support ship.
Modernizations 11.
2012: armament was removed
Naval service
In 2012 Liaoyang was transferred to Marine Surveillance and in 2013 to Coast Guard.
