PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

MINE WARFARE SHIPS AND CRAFTS

No364 ocean minesweepers (projects 6610, 05, 010, 1958-1990)

863 2000

Name No Builder Laid down Launched Comp Fate
  364? Wuchang, Wuhan or Huangpu, Guangzhou     9/1958 stricken 2003-07
  375 Wuchang, Wuhan or Huangpu, Guangzhou     1958-90 stricken 2003-07
  376 Wuchang, Wuhan or Huangpu, Guangzhou     1958-90 stricken 2003-07
  377 Wuchang, Wuhan or Huangpu, Guangzhou     1958-90 stricken 2003-07
  378 Wuchang, Wuhan or Huangpu, Guangzhou     1958-90 stricken 2003-07
  379 Wuchang, Wuhan or Huangpu, Guangzhou     1958-90 stricken 2003-07
  380 Wuchang, Wuhan or Huangpu, Guangzhou     1958-90 stricken 2003-07
  386 Wuchang, Wuhan or Huangpu, Guangzhou     1958-90 stricken 2003-07
  387 Wuchang, Wuhan or Huangpu, Guangzhou     1958-90 stricken 2003-07
  388 Wuchang, Wuhan or Huangpu, Guangzhou     1958-90 stricken 2003-07
  389 Wuchang, Wuhan or Huangpu, Guangzhou     1958-90 stricken 2003-07
  396 Wuchang, Wuhan or Huangpu, Guangzhou     1958-90 stricken 2003-07
  397 Wuchang, Wuhan or Huangpu, Guangzhou     1958-90 stricken 2003-07
  398 Wuchang, Wuhan or Huangpu, Guangzhou     1958-90 stricken 2003-07
  399 Wuchang, Wuhan or Huangpu, Guangzhou     1958-90 stricken 2003-07
  801 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 stricken 2003-07
  802 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 stricken 2003-07
  803 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 stricken 2003-07
  804 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 stricken 2003-07
  805 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 stricken 2003-07
  806 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 stricken 2003-07
  807 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 stricken 2003-07
雲州 <Yunzhou>, later- 岱山 <Daishan> 808 Wuchang, Wuhan or Huangpu, Guangzhou     1986 in service (2017)
长宁县 <Changningjian> 809 Wuchang, Wuhan or Huangpu, Guangzhou     1986 in service (2017)
  812 Wuchang, Wuhan or Huangpu, Guangzhou     1986 stricken 5/2016
  813 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 stricken 2003-07
  821 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 stricken 2003-07
  822 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 stricken 2003-07
  823 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 stricken 2003-07
  829 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 stricken 2003-07
宿州 <Suzhou>, later- 如东 <Rudong> 830 Wuchang, Wuhan or Huangpu, Guangzhou     1984 in service (2017)
泰州 <Taizhou>, later- 嵊州 <Shengzhou> 831 Wuchang, Wuhan or Huangpu, Guangzhou     1985 in service (2017)
常州 <Changzhou>, later- 桐城 <Tongcheng> 832 Wuchang, Wuhan or Huangpu, Guangzhou     1985 in service (2017)
泉州 <Quanzhou>, later- 当涂 <Dangtu> 833 Wuchang, Wuhan or Huangpu, Guangzhou     1985 in service (2017)
泗州 <Sizhou>, later- 建德 <Jiande> 834 Wuchang, Wuhan or Huangpu, Guangzhou     1986 in service (2017)
株洲 <Zhuzhou> 845 Wuchang, Wuhan or Huangpu, Guangzhou     1984-90 in service (2017)
梅州 <Meizhou> 849 Wuchang, Wuhan or Huangpu, Guangzhou     1984-90 in service (2017)
滁州 <Chouzhou> 850 Wuchang, Wuhan or Huangpu, Guangzhou     1984-90 in service (2017)
惠州 <Huizhou>, later- 富民 <Fumin> 851, later- 835 Wuchang, Wuhan or Huangpu, Guangzhou     1984-90 in service (2017)
汨罗 <Miluo> 852, later- 836 Wuchang, Wuhan or Huangpu, Guangzhou     1984-90 in service (2017)
梧州 <Wuzhou>, later- 绥江 <Suijiang> 853, later- 837 Wuchang, Wuhan or Huangpu, Guangzhou     1984-90 in service (2017)
柳州 <Liuzhou>, later- 斗门 <Doumen> 854, later- 838 Wuchang, Wuhan or Huangpu, Guangzhou     1984-90 in service (2017)
  863 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 stricken 2003-07
  994 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 survey vessel 2000s
  995 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 survey vessel 2000s
  996 Wuchang, Wuhan or Huangpu, Guangzhou     1970-90 survey vessel 2000s



Displacement standard, t

500

Displacement full, t

590

Length, m

60.0

Breadth, m

8.60

Draught, m

2.16

No of shafts

2

Machinery

2 9D diesels

Power, h. p.

2200

Max speed, kts

14

Fuel, t

diesel oil 70

Endurance, nm(kts)

3200(10)

Armament

6610: 2 x 2 - 37/63 type 61, 2 x 2 - 25/80 type 61, 2 x 2 - 12.7/79, 2 DCT, 2 DCR (22), 16 - 12 mines, MT-2 mechanical sweeping gear, TEM-52 magnetic sweeping gear, 2 BAT-2 acoustic sweeping gears

05: 1 x 1 - 85/52 92K, 1 x 2 - 37/63 type 61, 2 x 2 - 25/80 type 61, 2 x 2 - 12.7/79, 2 DCT, 2 DCR (22), 16 - 12 mines, MT-2 mechanical sweeping gear, TEM-52 magnetic sweeping gear, 2 BAT-2 acoustic sweeping gears

010: 1 x 1 - 85/52 92K, 1 x 2 - 37/63 type 61, 4 x 2 - 25/80 type 61, 4 x 2 - 14.5/93, 2 DCT, 2 DCR (22), 16 - 12 mines, MT-2 mechanical sweeping gear, TEM-52 magnetic sweeping gear, 2 BAT-2 acoustic sweeping gears

Sensors

Lin' or type 756 radar, Tamir-11 sonar

Complement

6610, 05: 70

010: 80



Ship project history: Type 6610 was Chinese-built copy of Soviet project 254M minesweeper, 4 were built. Others were built as Types 05 and 010. Type 05 was intended to service in South China Sea and was air-conditioned, type 010, intended also for long patrol duty, is stronger armed and has better habitation ability. Probably 4 ships of Type 05 were built, 29 others belonged to Type 010. One more ship was completed as survey vessel. Only 14 ships were in active service early in 2016.

Number of ships in active service at the year beginning:

2003: 41

2005: 24

2007: 14

Modernizations: None.

Naval service: No significant events.

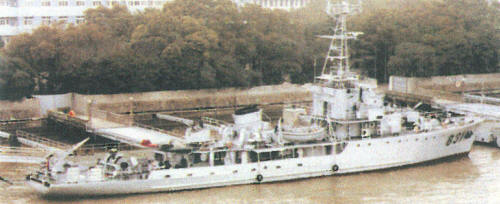

Shengzhou 2003



Ivan Gogin, 2015-17
