XU XIAKE troop transports (2011-)
Xu Xiake
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 徐霞客 [Xu Xiake] | 88 | Guangzhou SY | 9.2010 | 30.6.2011 | in service (2019) | ||
| 郦道元 [Lidao Yuan] | 89 | Guangzhou SY | 2018 | 2018 | in service (2019) |
100 - 1000 t displacement/ BRT tonnage vessels
Technical data
| Displacement standard, t | 23000 |
|---|---|
| Displacement normal, t | 30000 |
| Length, m | 196.0 |
| Breadth, m | 28.0 |
| Draught, m | 8.00 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 7200 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 8000(14) |
| Armament | 1 x 2 - 25/82 type 61 |
| Military load | 2500 passengers |
| Electronic equipment | 2x nav. radars |
| Complement | 130 |

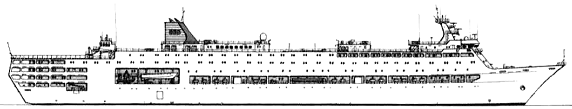

Standard scale images

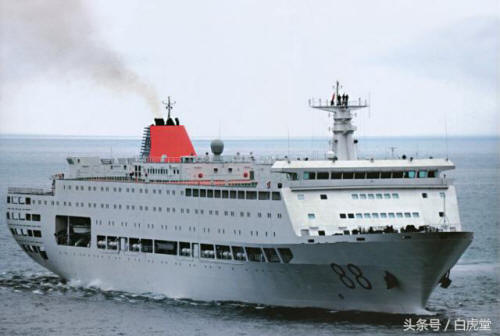

Xu Xiake 2015
Graphics
Xu Xiake
Project history
Primary role of this ship is service as barrack ship for builders and crew members of new-built aircraft carriers. She can also be used as training ship and troop carrier. Ship can be armed with type 81 ASWRLs, 30mm and 57mm twin gunmounts.
Modernizations
None.
Naval service
No significant events.
