SHENGSHAN medium landing ships (project 073A, 2003-2004)

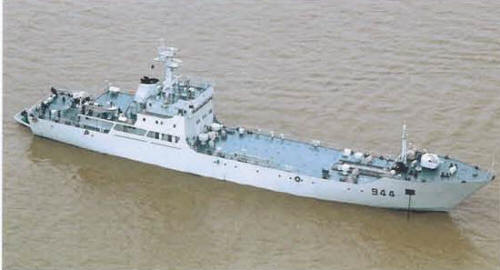

Yushan 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
嵊山 [Shengshan] 941   Zhonghua, Shanghai   12.2003 2004 in service (2019)
鲁山 [Lushan] 942   Wuhu SY   2004 2004 in service (2019)
蒙山 [Mengshan] 943   Qingdao NYd   2004 2004 in service (2019)
玉山 [Yushan] 944   Lushun SY   2004 2004 in service (2019)
华山 [Huashan] 945   Wuhu SY   1.7.2003 2003 in service (2019)
嵩山 [Songshan] 946   Zhonghua, Shanghai   1.6.2003 2004 in service (2019)
庐山 [Lushan] 947   Qingdao NYd   1.8.2003 2004 in service (2019)
雪山 [Xueshan] 948   Lushun SY   1.9.2003 2004 in service (2019)
衡山 [Hengshan] 949   Lushun SY   1.10.2003 2004 in service (2019)
泰山 [Taishan] 950   Zhonghua, Shanghai   3.2004 2004 in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate 嵊山 [Shengshan] 941   Zhonghua, Shanghai   12.2003 2004 in service (2019) 鲁山 [Lushan] 942   Wuhu SY   2004 2004 in service (2019) 蒙山 [Mengshan] 943   Qingdao NYd   2004 2004 in service (2019) 玉山 [Yushan] 944   Lushun SY   2004 2004 in service (2019) 华山 [Huashan] 945   Wuhu SY   1.7.2003 2003 in service (2019) 嵩山 [Songshan] 946   Zhonghua, Shanghai   1.6.2003 2004 in service (2019) 庐山 [Lushan] 947   Qingdao NYd   1.8.2003 2004 in service (2019) 雪山 [Xueshan] 948   Lushun SY   1.9.2003 2004 in service (2019) 衡山 [Hengshan] 949   Lushun SY   1.10.2003 2004 in service (2019) 泰山 [Taishan] 950   Zhonghua, Shanghai   3.2004 2004 in service (2019)

Technical data


Displacement standard, t1460
Displacement normal, t

1850

Length, m

87.0 pp 90.0 oa

Breadth, m

12.6

Draught, m2.25
No of shafts

2

Machinery

2 SEMT-Pielstick 6PA 6L280 diesels

Power, h. p.

4800

Max speed, kts

17

Fuel, t

diesel oil

Endurance, nm(kts)1500(14)
Armament

1 x 2 - 37/63 type 76A

Military load

6 main battle tanks or 250 t of cargo, 180 troops

Electronic equipmenttype 756 radar
Complement

74



Standard scale images


<i>Shengshan </i>2010
Shengshan 2010


Graphics


<i>Yushan </i>2008
Yushan 2008


Project history

Enlarged variant of Type 073II. Bow and stern ramps. 2 type 724 LCAC can be taken via stern ramp.

Modernizations

None.

Naval service

No significant events.
