KUNLUNSHAN amphibious transport-docks (project 071, 2007-)





Kunlunshan 2007

Ships


Name No Yard No Builder Laid down Launched Comp Fate
昆仑山 [Kunlunshan] 998   Hudong-Zhonghua, Shanghai 7/2006 21.12.2006 30.11.2007 in service (2019)
井冈山 [Jinggangshan] 999   Hudong-Zhonghua, Shanghai 2009 18.11.2010 30.10.2011 in service (2019)
长白山 [Changbaishan] 989   Hudong-Zhonghua, Shanghai 2010 26.9.2011 23.9.2012 in service (2019)
沂蒙山 [Yimengshan] 988   Hudong-Zhonghua, Shanghai 2013 22.1.2015 1.2.2016 in service (2019)
龙虎山 [Lungfushan] 980   Hudong-Zhonghua, Shanghai 2015 15.6.2017 12.9.2018 in service (2019)
五指山 [Wuzhishan] 987   Hudong-Zhonghua, Shanghai 2016 20.1.2018 12.1.2019 in service (2019)
武当山 [Wudangshan] 986   Hudong-Zhonghua, Shanghai 2017 28.12.2018 2020 building (2019)
viii     Hudong-Zhonghua, Shanghai 2018 2019 2021 building (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate 昆仑山 [Kunlunshan] 998   Hudong-Zhonghua, Shanghai 7/2006 21.12.2006 30.11.2007 in service (2019) 井冈山 [Jinggangshan] 999   Hudong-Zhonghua, Shanghai 2009 18.11.2010 30.10.2011 in service (2019) 长白山 [Changbaishan] 989   Hudong-Zhonghua, Shanghai 2010 26.9.2011 23.9.2012 in service (2019) 沂蒙山 [Yimengshan] 988   Hudong-Zhonghua, Shanghai 2013 22.1.2015 1.2.2016 in service (2019) 龙虎山 [Lungfushan] 980   Hudong-Zhonghua, Shanghai 2015 15.6.2017 12.9.2018 in service (2019) 五指山 [Wuzhishan] 987   Hudong-Zhonghua, Shanghai 2016 20.1.2018 12.1.2019 in service (2019) 武当山 [Wudangshan] 986   Hudong-Zhonghua, Shanghai 2017 28.12.2018 2020building (2019) viii     Hudong-Zhonghua, Shanghai 2018 20192021building (2019)

Technical data


Displacement standard, t12300
Displacement normal, t

17600, 19000 ballasted

Length, m

210.0

Breadth, m

28.0

Draught, m7.00
No of shafts

2

Machinery

2 SEMT-Pielstick 16PC 2.6V400 diesels

Power, h. p.

48000

Max speed, kts

20

Fuel, t

diesel oil

Endurance, nm(kts)6000(18)
Armament

1 x 1 - 76/59 PJ-26, 4 x 6 - 30/54 PJ-13, 4 x 1 - 14.5/93, 2 helicopters (Z-8)

Military load

4 LCAC or 4 LCM, 2 LCVP, 20 tanks or 75 vehicles, 500-800 troops

Electronic equipmenttype 360, type 364, 2x NR 2000, type 344, 2x type 347G radars, 4x type 726 decoy RL
Complement

175



Standard scale images

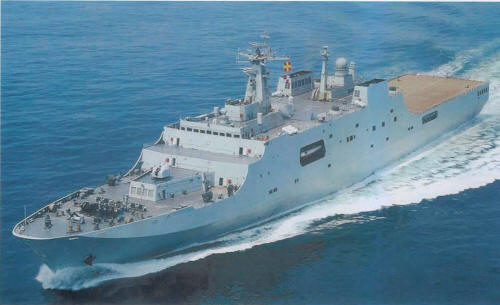

<i> Kunlunshan </i> 2010
Kunlunshan 2010


Graphics

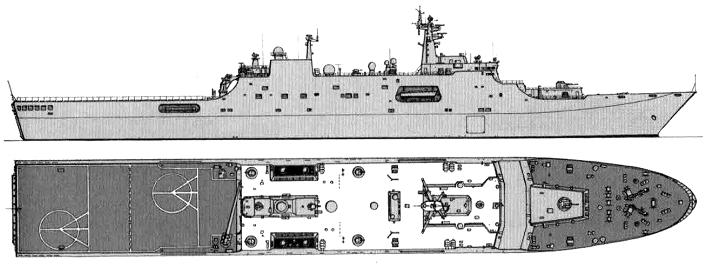

<i>Kunlunshan </i>2007
Kunlunshan 2007


Project history

First large amphibious ships of the Chinese Navy. Four LCAC or LCM-class craft can be carried on the well deck. Helicopter deck (50.0x30.0m) had 4 spots for landing/take-off and handling of Z-8 size helicopters. Two helicopters can be carried in the hangar (18.5x23.0x8.0m). 2 LCVP are carried on davits. There are reserve spaces for FL-3000N SAM. Ships have a large hospital (450m² total area).

Modernizations

None.

Naval service

No significant events.

© Ivan Gogin, 2017-19
