No478 medium landing ships (project 074, 1995-)

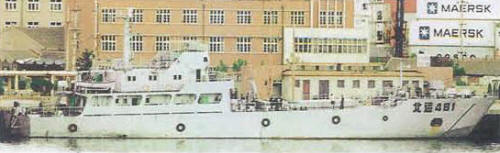

No481 1999

Ships


Name No Yard No Builder Laid down Launched Comp Fate
  478, later- 3111   Wuhu SY     1995-00 in service (2019)
  479, later- 3112   Wuhu SY     1995-00 in service (2019)
  480, later- 3113   Wuhu SY     1995-00 in service (2019)
  481, later- 3115   Wuhu SY     1995-00 in service (2019)
  482, later- 3116   Wuhu SY     1995-00 in service (2019)
  483, later- 3117   Wuhu SY     1995-00 in service (2019)
  3229   Wuhu SY     1995-00 in service (2019)
  3231   Wuhu SY     1995-00 in service (2019)
  3244   Wuhu SY     1995-00 in service (2019)
  7593   Wuhu SY     1995-00 in service (2019)
  7594   Wuhu SY     1995-00 in service (2019)
  7595   Wuhu SY     1995-00 in service (2019)
  3357   Xijiang SY   2016 10.2.2017 in service (2019)
  3358   Xijiang SY   2016 2018 in service (2019)
  3359   Xijiang SY   2016 2019 building (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate   478, later- 3111   Wuhu SY     1995-00 in service (2019)   479, later- 3112   Wuhu SY     1995-00 in service (2019)   480, later- 3113   Wuhu SY     1995-00 in service (2019)   481, later- 3115   Wuhu SY     1995-00 in service (2019)   482, later- 3116   Wuhu SY     1995-00 in service (2019)   483, later- 3117   Wuhu SY     1995-00 in service (2019)   3229   Wuhu SY     1995-00 in service (2019)   3231   Wuhu SY     1995-00 in service (2019)   3244   Wuhu SY     1995-00 in service (2019)   7593   Wuhu SY     1995-00 in service (2019)   7594   Wuhu SY     1995-00 in service (2019)   7595   Wuhu SY     1995-00 in service (2019)   3357   Xijiang SY   2016 10.2.2017 in service (2019)   3358   Xijiang SY   2016 2018 in service (2019)   3359   Xijiang SY   2016 2019building (2019)

Technical data


Displacement standard, t486
Displacement normal, t

800

Length, m

58.4

Breadth, m

10.4

Draught, m2.70
No of shafts

2

Machinery

2 MAN 8L 20/27 diesels

Power, h. p.

4900

Max speed, kts

14

Fuel, t

diesel oil

Endurance, nm(kts)1000(12)
Armament

1 x 2 - 25/80 type 61, 2 x 2 - 14.5/93

3357-3359: 1 x 1 - 30/77 H/PJ-14, 2 x 1 - 12.7/79

Military load

2 main battle tanks, 200 troops

Electronic equipmentradar
Complement

56



Standard scale images


<i>No</i><i>3111 </i> 2010
No3111 2010


Graphics


<i>No481 </i>1999
No481 1999


Project history

Replacement of type 079 with simplified construction for mass-production, with flat bottom. They became really redesigned and enlarged type 271.

Modernizations

None.

Naval service

No significant events.
