No481 medium landing ships (project 271IIIA,1989-1990)





2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
  481   Shanghai     1989-90 auxiliary 2018
  3703   Shanghai     1989-90 auxiliary 2018
  6562   Shanghai     1989-90 auxiliary 2018
  7559   Shanghai     1989-90 auxiliary 2018
  v   Shanghai     1989-90 auxiliary 2018


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate   481   Shanghai     1989-90 auxiliary 2018   3703   Shanghai     1989-90 auxiliary 2018   6562   Shanghai     1989-90 auxiliary 2018   7559   Shanghai     1989-90 auxiliary 2018   v   Shanghai     1989-90 auxiliary 2018

Technical data


Displacement standard, t614
Displacement normal, t

800

Length, m

56.5

Breadth, m

10.4

Draught, m2.28
No of shafts

2

Machinery

2 MAN 8L20/27 diesels

Power, h. p.

2284

Max speed, kts

15

Fuel, t

diesel oil

Endurance, nm(kts)1000(10)
Armament

2 x 2 - 14.5/93

Military load

100 - 150 t of cargo or 200 troops or 3 main battle tanks + 70 troops

Electronic equipmenttype 756 radar
Complement

56



Standard scale images


<i>No481 </i>2000
No481 2000


Graphics

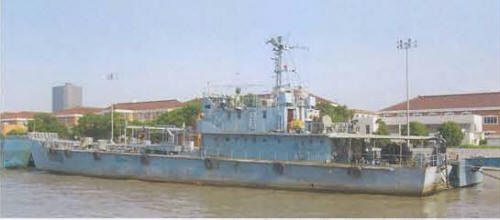

2008
2008


Project history

Modification of Type 271III LCU with displacement increased by a third, becoming LCM.

Modernizations

None.

Naval service

No significant events.
