ZHOUSHAN frigates (project 054A, 2008-2019)

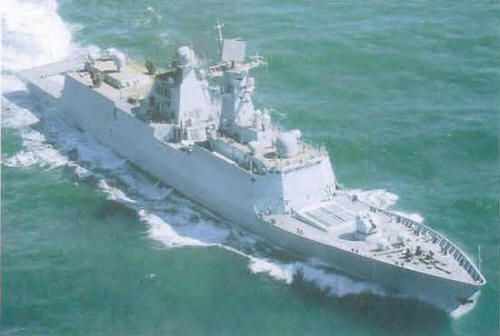

Zhoushan 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 咸宁 [Xianning] | 500 | Huangpu, Guangzhou | 2016 | 22.9.2017 | 28.8.2018 | in service (2019) | |
| 滨州 [Binzhou] | 515 | Hudong, Shanghai | 2014 | 13.12.2015 | 29.12.2016 | in service (2019) | |
| 舟山 [Zhoushan] | 529 | Hudong, Shanghai | 2005 | 21.12.2006 | 3.1.2008 | in service (2019) | |
| 徐州 [Xuzhou] | 530 | Huangpu, Guangzhou | 2005 | 30.9.2006 | 27.1.2008 | in service (2019) | |
| 湘潭 [Xiangtan] | 531 | Huangpu, Guzngzhou | 2014 | 19.3.2015 | 24.2.2016 | in service (2019) | |
| 荆州 [Jingzhou] | 532 | Hudong, Shanghai | 2014 | 21.1.2015 | 5.1.2016 | in service (2019) | |
| 许昌 [Xuchang] | 536 | Huangpu, Guangzhou | 2015 | 30.5.2016 | 23.6.2017 | in service (2019) | |
| 烟台 [Yantai] | 538 | Huangpu, Guangzhou | 2009 | 24.8.2010 | 30.7.2011 | in service (2019) | |
| 芜湖 [Wuhu] | 539 | Hudong, Shanghai | 2015 | 8.6.2016 | 29.6.2017 | in service (2019) | |
| 盐城 [Yancheng] | 546 | Hudong, Shanghai | 2010 | 27.4.2011 | 5.6.2012 | in service (2019) | |
| 临沂 [Linyi] | 547 | Huangpu, Guangzhou | 2010 | 13.12.2011 | 22.11.2012 | in service (2019) | |
| 益阳 [Yiyang] | 548 | Huangpu, Guangzhou | 2008 | 17.11.2009 | 26.10.2010 | in service (2019) | |
| 常州 [Changzhou] | 549 | Hudong, Shanghai | 2009 | 18.5.2010 | 30.5.2011 | in service (2019) | |
| 潍坊 [Weifang] | 550 | Hudong, Shanghai | 2011 | 9.7.2012 | 22.6.2013 | in service (2019) | |
| 衡阳 [Hengyang] | 568 | Hudong, Shanghai | 2006 | 23.5.2007 | 30.6.2008 | in service (2019) | |
| 玉林 [Yulin] | 569 | Hudong, Shanghai | 2008 | 28.4.2009 | 1.2.2010 | in service (2019) | |
| 黄山 [Huangshan] | 570 | Huangpu, Guangzhou | 2006 | 18.3.2007 | 13.5.2008 | in service (2019) | |
| 运城 [Yuncheng] | 571 | Huangpu, Guangzhou | 2008 | 8.2.2009 | 17.1.2010 | in service (2019) | |
| 衡水 [Hengshui] | 572 | Huangpu, Guangzhou | 2010 | 21.5.2011 | 9.7.2012 | in service (2019) | |
| 柳州 [Liuzhou] | 573 | Hudong, Shanghai | 2010 | 10.12.2011 | 26.12.2012 | in service (2019) | |
| 三亚 [Sanya] | 574 | Hudong, Shanghai | 2011 | 30.11.2012 | 13.12.2013 | in service (2019) | |
| 岳阳 [Yueyang] | 575 | Huangpu, Guangzhou | 2011 | 9.5.2012 | 3.5.2013 | in service (2019) | |
| 大庆 [Daqing] | 576 | Huangpu, Guangzhou | 2012 | 8.10.2013 | 16.1.2015 | in service (2019) | |
| 黄冈 [Huanggang] | 577 | Hudong, Shanghai | 2013 | 28.4.2013 | 16.1.2015 | in service (2019) | |
| 扬州 [Yangzhou] | 578 | Hudong, Shanghai | 2013 | 30.9.2013 | 21.9.2015 | in service (2019) | |
| 邯郸 [Handan] | 579 | Huangpu, Guangzhou | 2013 | 26.7.2014 | 16.8.2015 | in service (2019) | |
| 日照 [Rizhao] | 598 | Huangpu, Guangzhou | 2016 | 1.4.2017 | 12.1.2018 | in service (2019) | |
| 安阳 [Anyang] | 599 | Hudong, Shanghai | 2016 | 28.3.2017 | 12.4.2018 | in service (2019) | |
| 南通 [Nantung] | 601 | Hudong, Shanghai | 2016 | 16.12.2017 | 23.1.2019 | in service (2019) | |
| 枣庄 [Zhaozhuang] | 542 | Huangpu, Guangzhou | 2017 | 30.6.2018 | 22.2.2019 | in service (2019) |
Technical data
| Displacement standard, t | 3500 |
|---|---|
| Displacement full, t | 3900 |
| Length, m | 127.0 pp 134.0 oa |
| Breadth, m | 16.0 |
| Draught, m | 5.00 |
| No of shafts | 2 |
| Machinery | 4 SEMT-Pielstick 16PA 6V280STC diesels |
| Power, h. p. | 28200 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3800(18) |
| Armament | 529, 530, 538, 546-550, 568-575, 577: 2 x 4 Ying Ji-83 SSM (8 C-803), 4 x 8 HQ-16 SAM (VLS, 32 HQ-16), 1 x 1 - 76/59 PJ-26, 2 x 7 - 30/77 type 730, 2 x 1 - 14.5/89, 2 x 3 - 324 TT, 2 x 6 type 87 ASWRL, 1 helicopter (Z-9A/C or Ka-28) 515, 531, 532, 536, 551, 552, 576, 578, 579 and 1 more: 2 x 4 Ying Ji-83 SSM (8 C-803), 4 x 8 HQ-16 SAM (VLS, 32 HQ-16), 1 x 1 - 76/59 PJ-26, 2 x 11 - 30/77 type 1130, 2 x 1 - 14.5/89, 2 x 3 - 324 TT, 2 x 6 type 87 ASWRL, 1 helicopter (Z-9A/C or Ka-28) |
| Electronic equipment | 2x Decca RM 1290A/D, type 382, type 364, type 366, type 344, 4x MR90, 2x type 347G radars, OFD-630 e/o sensor, MGK-335EMS, towed array sonars, HZ-100 ECM suite (SR-210, type 984/985, type 922-1 units), 2x 24-tubes decoy RL, ZKJ-4B/6 CCS |
| Complement | 190 |
Graphics
Zhoushan 2008
Project history
Type 054A, differs from type 054 by new SAM VLS, new main gun and CIWS. First 4 ships (Nos 529, 530, 568 and 570) belong to type 054, later ships were type 054A II, reportedly with improved electronics.
Modernizations
None.
Naval service
No significant events.
