MA'ANSHAN frigates (project 054, 2005)

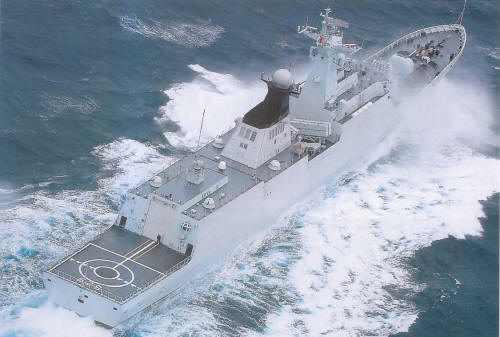

Wenzhou 2007
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 马鞍山 [Ma'anshan] | 525 | Hudong, Shanghai | 12.2001 | 11.9.2003 | 28.2.2005 | in service (2019) | |
| 温州 [Wenzhou] | 526 | Huangpu, Guangzhou | 2.2002 | 6.11.2003 | 27.9.2005 | in service (2019) |
Technical data
| Displacement standard, t | 3450 |
|---|---|
| Displacement full, t | 3850 |
| Length, m | 125.0 pp 132.0 oa |
| Breadth, m | 15.0 |
| Draught, m | 5.00 |
| No of shafts | 2 |
| Machinery | 4 SEMT-Pielstick 16PA 6V280STC diesels |
| Power, h. p. | 28200 |
| Max speed, kts | 27 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3800(18) |
| Armament | 2 x 4 Ying Ji-83 SSM (8 C-803), 1 x 8 HQ-7 SAM (16 HQ-7), 1 x 1 - 100/56 PJ-87, 4 x 6 - 30/54 AK-630, 2 x 3 - 324 TT, 2 x 6 type 87 ASWRL, 1 helicopter (Z-9A/C) |
| Electronic equipment | 2x Decca RM 1290A/D, type 360, type 364, type 344, type 345, 2x type 347G, type 345 radars, OFD-630 e/o sensor, MGK-335, towed array sonars, HZ-100 ECM suite (SR-210, type 984/985, type 922-1 units), 2x PJ-46 decoy RL, ZKJ-4B/6 CCS |
| Complement | 168 |
Graphics
Wenzhou 2007
Project history
Type 054. Next generation of Chinese FFG design incorporating numerous signature reduction features.
Modernizations
None.
Naval service
No significant events.
