CHANGSHA frigates (project 053H, 1974-1980)





Jiujiang 1999

Ships


Name No Yard No Builder Laid down Launched Comp Fate
常德 [Changde], 3.2007- 舷號 1002 [Haijing 1002], 2015- 舷號 44102 [Haijing 44102] 509, 3.2007- 1002, later- 44102   Hudong SY, Shanghai   29.4.1979 30.9.1979 to Coast Guard 3.2007, stricken 6.2016
绍兴 [Shaoxing], 3.2007- 舷號 1003 [Haijing 1003], 2015- 舷號 46103 [Haijing 46103] 510, 3.2007- 1003, later- 46103   Hudong SY, Shanghai   26.1.1979 30.6.1979 to Coast Guard 3.2007, stricken 10.2016
南通 [Nantong] 511   Hudong SY, Shanghai   9.11.1976 31.3.1977 stricken 8.2012
无锡 [Wuxi] 512   Hudong SY, Shanghai   27.7.1977 14.12.1978 stricken 8.2012
淮陰 [Huaiyin], 12.2006- 淮安 [Huai'an] 513   Hudong SY, Shanghai   19.4.1977 31.12.1977 stricken 5.2013
镇江 [Zhenjiang] 514   Hudong SY, Shanghai   11.2.1978 25.1.1979 target 5.2013
厦门 [Xiamen] 515   Hudong SY, Shanghai   27.10.1975 31.12.1975 museum ship 8.2013
長沙 [Changsha], 8.1981- 九江 [Jiujiang] 516   Hudong SY, Shanghai   28.6.1975 31.12.1975 stricken 8.2017
南平 [Nanping] 517   Hudong SY, Shanghai   16.4.1976 31.10.1977 TS 2012, in service (2019)
吉安 [Ji'an] 518   Hudong SY, Shanghai   10.7.1978 31.3.1979 TS 2012, stricken 2016
长治 [Changzhi] 519   Hudong SY, Shanghai   24.7.1979 16.12.1979 test ship 2012, stricken 2014
开封 [Kaifeng] 520   Hudong SY, Shanghai   7.10.1979 28.6.1980 wrecked 1985, stricken 1993
茂名 [Maoming] 551   Hudong SY, Shanghai   10.5.1980 30.9.1980 stricken 10.2012
宜宾 [Yibin] 552   Hudong SY, Shanghai   17.7.1980 19.12.1980 stricken 10.2012


Technical data


Displacement standard, t

1425

Displacement full, t

1702

Length, m

103.2

Breadth, m

10.2

Draught, m

3.05 hull

No of shafts

2

Machinery

2 SEMT-Pielstick 12PA6 280BTC diesels

Power, h. p.

16000

Max speed, kts

25.5

Fuel, t

diesel oil

Endurance, nm(kts)3000(18)
Armament

509-514, 517-519: 2 x 2 Hai Ying-2 SSM (4 C-201), 2 x 1 - 100/56 B-34USMA, 6 x 2 - 37/63 type 74, 2 x 5 type 81 ASWRL, 4 DCT, 2 DCR, mines

515, 516: 2 x 2 Hai Ying-2 SSM (4 C-201), 2 x 1 - 100/56 B-34USMA, 6 x 2 - 37/63 type 74, 4 x 5 type 81 ASWRL, 4 DCT, 2 DCR, mines

520, 551, 552: 2 x 2 Hai Ying-2 SSM (4 C-201), 2 x 1 - 100/56 B-34USMA, 6 x 2 - 37/63 type 76, 2 x 5 type 81 ASWRL, 4 DCT, 2 DCR, mines

Electronic equipmenttype 756, type 354, type 352C radars, EH-5 sonar, RWD-8 ECM suite
Complement

190



Standard scale images


<i>Jiujiang </i>2010

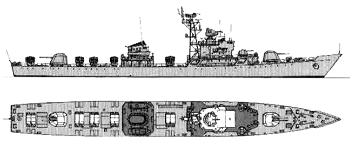

Jiujiang 2010
<i>Haijing 44102 </i>2015
Haijing 44102 2015
<i>Changsha </i>1980

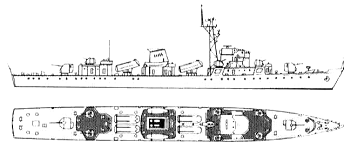

Changsha 1980


Graphics


<i>Haijing 1002 </i>2007

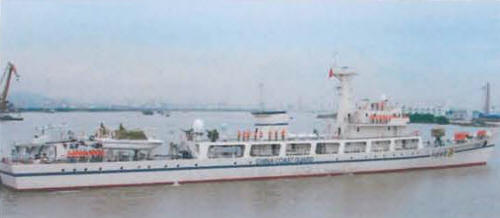

Haijing 1002 2007
<i>Jiujiang </i>1999

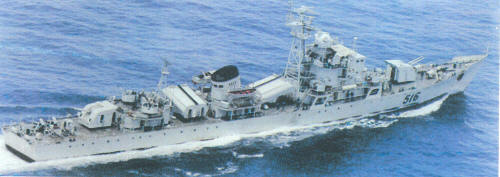

Jiujiang 1999
<i>Nantong </i>2000

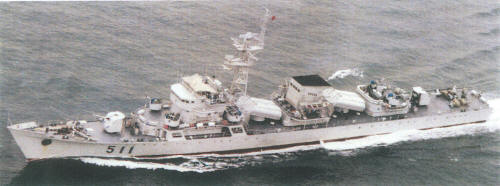

Nantong 2000


Project history

SSM-armed variant of Type 053K.

Modernizations

2004, Jiujiang: - 2 x 2 Hai Ying-2 SSM, 2 x 1 - 100/56; + 2 x 2 - 100/56 type 99, 5 x 50 - 300 WS-1B rocket launchers

7/2007, Haijing 1002, 1003: superstructure was rebuilt, armament consisted of 1 x 1 - 37/63, 2 x 2 - 14.5/89, 2 patrol boats, sensors consisted of 2 navigation radars

Naval service

No significant events.
