fighting ships of the world

PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

ESCORTS

BENGBU corvettes (2013-)

Bengbu 2015

Name No Builder Laid down Launched Comp Fate
Type 056
信阳 <Xinyang> 501 Liao Nan, Lushun 2013 1/5/2014 7/3/2015 in service (2017)
宿州 <Suzhou> 503 Wuchang, Wuhan 2013 17/5/2014 11/2/2015 in service (2017)
淮安 <Huai'an> 509 Hudong Shanghai 2014 18/8/2015 11/8/2016 in service (2017)
宁德 <Ningde> 510 Huangpu, Guangzhou 2014 24/10/2015 28/12/2016 in service (2017)
保定 <Baoding> 511 Wuchang, Wuhan 2014 22/10/2015 12/12/2016 in service (2017)
菏泽 <Heze> 512 Liao Nan, Lushun 2014 16/7/2015 12/12/2016 in service (2017)
大同 <Datong> 580 Liao Nan, Lushun 2011 10/8/2012 18/5/2013 in service (2017)
营口 <Yingkou> 581 Liao Nan, Lushun 2012 18/11/2012 1/8/2013 in service (2017)
蚌埠 <Bengbu> 582 Hudong, Shanghai 2011 23/5/2012 12/3/2013 in service (2017)
上饶 <Shangrao> 583 Hudong, Shanghai 2011 19/8/2012 10/6/2013 in service (2017)
梅州 <Meizhou> 584 Wuchang, Wuhan 2011 31/7/2012 29/7/2013 in service (2017)
百色 <Baise> 585 Wuchang, Wuhan 2011 25/10/2012 12/10/2013 in service (2017)
吉安 <Ji'an> 586 Hudong, Shanghai 2012 25/2/2013 8/1/2014 in service (2017)
揭阳 <Jieyang> 587 Huangpu, Guangzhou 2012 28/1/2013 26/1/2014 in service (2017)
泉州 <Quanzhou> 588 Hudong, Shanghai 2012 25/6/2013 8/8/2014 in service (2017)
清远 <Qingyuan> 589 Huangpu, Guangzhou 2012 31/5/2013 11/6/2014 in service (2017)
威海 <Weihai> 590 Liao Nan, Lushun 2012 1/8/2013 15/3/2014 in service (2017)
抚顺 <Fushun> 591 Liao Nan, Lushun 2012 1/8/2013 11/7/2014 in service (2017)
泸州 <Luzhou> 592 Wuchang, Wuhan 2012 16/7/2013 7/6/2014 in service (2017)
潮州 <Chaozhou> 595 Wuchang, Wuhan 2013 14/11/2013 28/11/2014 in service (2017)
惠州 <Huizhou> 596 Huangpu, Guangzhou 2011 29/5/2012 1/7/2013 in service (2017)
钦州 <Qinzhou> 597 Huangpu, Guangzhou 2011 31/8/2012 1/7/2013 in service (2017)
Type 056A
黄石 <Huangshi> 502 Hudong, Shanghai 2013 16/5/2014 4/5/2015 in service (2017)
宿迁 <Suqian> 504 Huangpu, Guangzhou 2013 28/6/2014 18/6/2015 in service (2017)
秦皇岛 <Qinhuangdao> 505 Hudong, Shanghai 2013 11/10/2014 16/10/2015 in service (2017)
荆门 <Jingmen> 506 Huangpu, Guangzhou 2014 25/12/2014 25/1/2016 in service (2017)
铜仁 <Tongren> 507 Hudong, Shanghai 2014 19/3/2015 20/2/2016 in service (2017)
曲靖 <Qujing> 508 Huangpu, Guangzhou 2014 18/7/2015 8/6/2016 in service (2017)
鄂州 <Ezhou> 513 Hudong, Shanghai 2014 25/12/2015 18/1/2017 in service (2017)
六盘水 <Liupanshui> 514 Huangpu, Guangzhou 2015 31/3/2016 2017 building (2017)
宣城 <Xuancheng> 535 Wuchang, Wuhan 2015 19/8/2016 2017 building (2017)
三门峡 <Sanmenxia> 593 Hudong, Shanghai 2013 20/11/2013 13/11/2014 in service (2017)
株洲 <Zhuzhou> 594 Huangpu, Guangzhou 2013 29/11/2013 28/11/2014 in service (2017)
义乌 <Yiwu>   Hudong, Shanghai 2015 20/5/2016 2017 building (2017)
    Huangpu, Guangzhou 2015 22/7/2016 2017 building (2017)
    Hudong, Shanghai 2015 7/9/2016 2017 building (2017)
张掖 <Zhangye>   Liao Nan, Lushun 2015 14/9/2016 2017 building (2017)
    Liao Nan, Lushun 2015 14/9/2016 2017 building (2017)
    Wuchang, Wuhan 2015 10/2016 2017 building (2017)
    Huangpu, Guangzhou 2015 28/10/2016 2017 building (2017)
德阳 <Deyang>   Hudong, Shanghai 2015 29/12/2016 2017 building (2017)



Displacement standard, t

1300

Displacement full, t

1500

Length, m

89.0

Breadth, m

9.00

Draught, m

4.00

No of shafts

2

Machinery

2 SEMT-Pielstick PA6 diesels

Power, h. p.

16600

Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts)

2000(18)

Armament

2 x 2 Ying Ji-83 SSM (4 C-803), 1 x 8 FL-3000N SAM (8 HQ-10), 1 x 1 - 76/59 PJ-26, 2 x 1 - 30/77 PJ-17, 2 x 1 - 12.7/79, 2 x 3 - 324 TT, 2 UAVs, helicopter deck

Sensors

type 056: type 348, 2x SVA-Kaige nav., type 344 radars, OFD-630 e/o sensor, sonar, ECM suite

type 056A: type 348, 2x SVA-Kaige nav., type 344 radars, OFD-630 e/o sensor, bow sonar, SJG-206 sonar, ECM suite

Complement

60

Ship project history: Replacement for old frigates and patrol ships. Fitted with a helicopter/UAV landing deck capable to receive Z-9 helicopter and hangar for two unmanned drones. 42 units are planned totally.

Modernizations: None.

Naval service: No significant events.

Картинки по запросу type 056

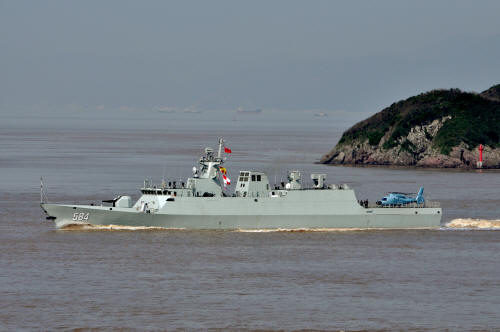

Meizhou 2013
