Shenyang 2008

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comm	Fate
沈阳 [Shenyang]	115		Dalian SY	2003	28.12.2004	8.10.2006	in service (2019)
石家庄 [Shijiazhuang]	116		Dalian SY	2004	26.7.2005	8.3.2007	in service (2019)

Technical data

Displacement standard, t	5900
Displacement full, t	7100
Length, m	155.0
Breadth, m	17.0
Draught, m	6.00
No of shafts	2
Machinery	CODOG: 2 Zoria-Mashproekt DT-59 gas turbines / 2 MTU 12V1163 TB83 diesels
Power, h. p.	48600 / 8800
Max speed, kts	30
Fuel, t	diesel oil
Endurance, nm(kts)	5000(15)
Armament	2 x 4 Ying Ji-83 SSM (8 YJ-83 (C-803)), (4 x 8 + 2 x 8) S-300FM SAM (VLS, 48 48N6), 1 x 1 - 100/55 PJ-87, 2 x 7 - 30/77 type 730, 2 x 3 - 324 TT, helicopter deck (Z-9)
Electronic equipment	type 382, type 364, type 366, 30N6, type 344, 2x type 347G, 2x type 756 radars, 2x OFC-3 e/o directors, SJD-8/9 sonar, type 984/985, HZ-100 ECM suites, 2 type 726-4 18-tube, 2 10-tube decoy launchers, TAVITAC-2000 CCS
Complement	250

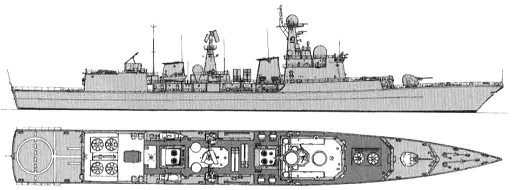

Standard scale images

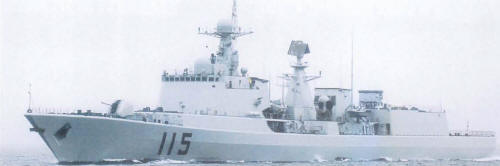

Graphics

Project history

Type 051C. Hull design is nearly identical to type 51B. No signature reduction features have been included. Though not equipped with a hangar (former hangar of type 51B is used for S-300FM SAM system placing), a flight deck is fitted for landing and handling of medium-size helicopter up to Ka-28 (Z-18).

Modernizations

None.

Naval service

No significant events.
