LANZHOU destroyers (2004-2015)

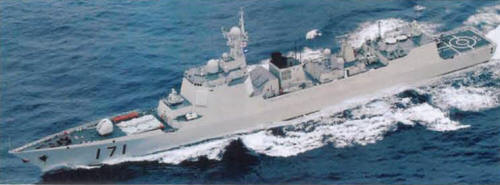

Haikou 2007

Ships


Name No Yard No Builder Laid down Launched Comp Fate
兰州 [Lanzhou] 170   Jiangnan, Shanghai 6/2002 29.4.2003 18.7.2004 in service (2019)
海口 [Haikou] 171   Jiangnan, Shanghai 11/2002 29.10.2003 20.7.2005 in service (2019)
长春 [Changchun] 150   Jiangnan, Changxing 2009 28.11.2010 1.2.2013 in service (2019)
郑州 [Zhengzhou] 151   Jiangnan, Changxing 2010 20.7.2011 26.12.2013 in service (2019)
济南 [Jinan] 152   Jiangnan, Changxing 2010 16.10.2011 22.12.2014 in service (2019)
西安 [Xian] 153   Jiangnan, Changxing 2011 28.5.2012 9.2.2015 in service (2019)


Technical data


Displacement standard, t

6000
Displacement full, t

7100
Length, m

155.0
Breadth, m

17.0
Draught, m

6.00
No of shafts

2
Machinery

CODOG: 2 Zoria-Mashproekt DA-80 gas turbines / 2 Shaanxi 20V956 TB92 diesels
Power, h. p.

48600 / 9800
Max speed, kts

29
Fuel, t

diesel oil
Endurance, nm(kts)

4500(15)
Armament

2 x 4 Ying Ji-62 SSM (8 YJ-62 (C-602)), (6 x 6 + 2 x 6) HQ-9 SAM (VLS, 48 HQ-9), 1 x 1 - 100/55 PJ-87, 2 x 7 - 30/77 type 730, 2 x 3 - 324 TT, 1 helicopter (Ka-28)
Electronic equipment

type 346, type 517H-1, type 364, 4x MR90, type 344, 2x type 347G, 2x type 756 radars, 2x OFC-3 e/o directors, SJD-8/9 sonar, type 984/985, HZ-100 ECM suites, 4 type 726-4 decoy launchers, ZKJ-5 CCS
Complement

280


Standard scale images

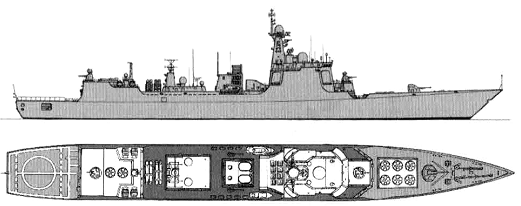

<i>Lanzhou </i>2010
Lanzhou 2010


Graphics


<i>Haikou </i>2007
Haikou 2007


Project history

Type 052C. First Chinese surface combatant with a true air-defence capability. Based on the same hull as type 052B, this class is equipped with an AEGIS-style phased-array radar capability and a VLS air-defence system along with modern anti-ship missiles. Following some sources, type 726-4 decoy launchers can be used as ASW rocket launchers.

Modernizations

None.

Naval service

No significant events.

© Ivan Gogin, 2019
