fighting ships of the world

PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

TORPEDO SHIPS

JINAN destroyers (1971-1987)

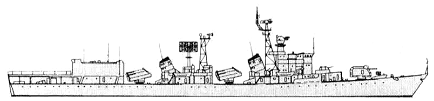

Jinan 1975

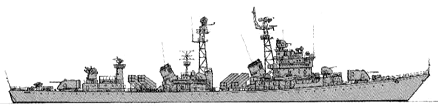

Xian 1990

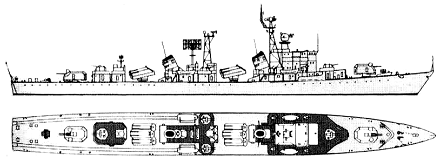

Jinan 1990

Kaifeng 2005

Name No Builder Laid down Launched Comp Fate
济南 <Jinan> 105 Dalian SY 12/1968 30/7/1970 31/12/1971 museum ship 11/2007
西安 <Xian> 106 Dalian SY 1969 9/1970 28/11/1974 training hulk 9/2007
银川 <Yinchuan> 107 Dalian SY 1970 5/1972 28/6/1976 museum ship 10/2012
西宁 <Xining> 108 Dalian SY 1973 16/10/1978 29/1/1980 museum ship 9/2013
开封 <Kaifeng> 109 Dalian SY 1974 3/11/1979 25/12/1982 in service (2017)
大连 <Dalian> 110 Zhonghua SY 1976 20/8/1981 26/12/1984 in service (2017)
  111 Dalian SY       cancelled
南京 <Nanjing> 131 Zhonghua SY 1972 11/12/1973 6/2/1977 museum ship 9/2012
合肥 <Hefei> 132 Zhonghua SY 1976 11/1978 18/3/1980 training hulk 11/2012
重庆 <Chongqing> 133 Zhonghua SY 1978 31/10/1980 30/12/1983 training hulk 9/2014
遵义 <Zunyi> 134 Zhonghua SY 1980 25/11/1983 28/12/1984 in reserve (2017)
  135 Dalian SY       cancelled
广州 <Guangzhou> 160 Guangzhou SY 1973 28/4/1971 30/6/1974 explosion 9/3/1978
长沙 <Changsha> 161 Guangzhou SY 1973 28/6/1973 31/12/1975 test ship 8/2008
南宁 <Nanning> 162 Guangzhou SY 1974 27/10/1976 23/3/1979 depot ship 9/2012
南昌 <Nanchang> 163 Guangzhou SY 1975 22/12/1979 15/11/1982 tourist attraction 9/2016
桂林 <Guilin> 164 Guangzhou SY 1984 20/6/1984 10/7/1987 in reserve (2017)



Displacement standard, t

3670

Displacement full, t

3960

Length, m

127.5 pp 132.0 oa

Breadth, m

12.8

Draught, m

4.39 hull 5.30 sonar

No of shafts

2

Machinery

geared steam turbines, 4 boilers

Power, h. p.

72000

Max speed, kts

35

Fuel, t

oil

Endurance, nm(kts)

2970(18)

Armament

105-107, 131, 160-162: 2 x 3 Hai Ying-1 SSM (6 HY-1), 2 x 2 - 130/58 type 76, 4 x 2 - 57/70 type 66, 2 x 2 - 25/80 type 61, 2 x 12 FQF-2500 (type 75) ASWRL, 4 DCT, 2 DCR, 38 mines

108-110, 132-134, 163, 164: 2 x 3 Hai Ying-1 SSM (6 HY-1), 2 x 2 - 130/58 type 76, 4 x 2 - 37/63 type 76, 2 x 2 - 25/80 type 61, 2 x 12 FQF-2500 (type 75) ASWRL, 4 DCT, 38 mines or 2 DCR

Sensors

105-107, 131, 160-162: type 354, type 515, type 352, type 343, type 751 radars, SJD-1 sonar, RW-23-1 ECM suite

108, 109, 132-134, 163, 164: type 354, type 517, type 352, type 343, type 347, type 751 radars, SJD-1, SJD-N sonars, RW-23-1 ECM suite

110: type 354, type 381, type 352, type 343, type 751 radars, SJD-1, SJD-N sonars, RW-23-1 ECM suite, ZKJ-1 CCS

Complement

302

Ship project history: The first ocean-going warships built by the PRC, these vessels are derived trom the Soviet Neustrashimy class (project 41), of which only one was built, despite their outward resemblance to the later project 56. They substitute triple SSM launchers for the TT of the Soviet ships. Hull design, weaponry and sensors compare very badly with other contemporary destroyers, or even with Taiwan's refitted ex-US ships. FQF-2500 ASWRL is derived from Soviet RBU-1200.

    First ships, built under original design were signed as type 051 (hull nos 105-107, 131, 160-162). Next ships (nos 108, 109, 133, 134, 163 and 164) were built as type 051D (D-Dingxing, finalized design). They have improved electronics and 37mm automatic guns instead of unsuccessful 57mm semi-automatic. Also additional attack sonar (SJD-N) was installed and specialized ASW fire control system. Hull nos 110 and 132 as type 051Z (Z-Zhihui, command) had new type 381 radar and combat control system, 110 was built in this configuration and 132 was converted later.

Modernizations: 1980s, Jinan, Xian, Yinchuan, Nanjing, Changsha, Nanning: - 4 x 2 - 57/70, 2 DCR; + 4 x 2 - 37/63 type 76, type 347 radar, SJD-N sonar

(1984-1987), Jinan, as type 051G: - 1 x 2 - 130/58, 1 x 2 - 37/63, 4 DCT, SJD-1, SJD-N sonars; + 2 x 3 - 324 TT, 2 helicopters (Z-9C), DE-1164 sonar suite (hull-mounted + VDS), SADOC-2 CCS

1987, Hefei, as type 051Z: + type 381 radar, ZKJ-2 CCS

1989, Jinan: - DE-1164 sonar suite; + SJD-1, SJD-N sonars

(1989-1990), Kaifeng, as type 051DT: - 1 x 2 - 37/63; + 1 x 8 HQ-7 SAM (16 HQ-7), type 345 radar

late 1990s, Kaifeng: - 2 x 3 Hai Ying-1 SSM, 3 x 2 - 37/63 type 76, type 352, 2x type 343 radars; + 4 x 4 Ying Ji-1 SSM (16 C-801), 3 x 3 - 37/63 type 76A, type 360, type 342, 2x type 344, Sea Tiger radars, ZKJ-4A-3 CCS

1999, Guilin: + Sea Eagle radar

2002, Dalian, as type 051DT: - 2 x 3 Hai Ying-1 SSM, 4 x 2 - 37/63 type 76, type 352, 2x type 343 radars; + 4 x 4 Ying Ji-1 SSM (16 C-801), 1 x 8 HQ-7 SAM (16 HQ-7), 3 x 3 - 37/63 type 76A, type 360, type 342, 2x type 344, type 381, type 345 radars, ZKJ-4A-3 CCS

early 2000s, Xining: + type 381 radar

Naval service: Guangzhou was lost 9/3/1978 due to an explosion off Zanjiang.

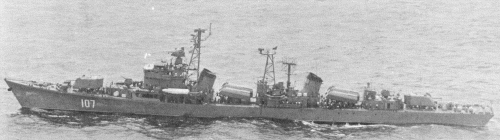

Yinchuan 1980

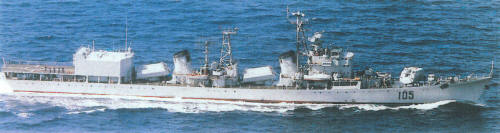

Jinan 1994

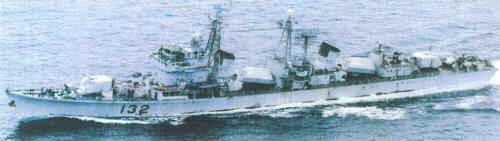

Hefei 1999

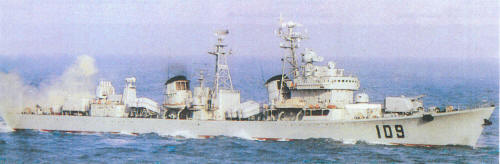

Kaifeng 2000

Ivan Gogin, 2016-17
