HAIXUN 01 patrol ship (2013)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 事局 01 [Haixun 01] | 01 | Wuchang SB, Wuhan | 28.7.2012 | 17.4.2013 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 5418 |
| Length, m | 112.7 pp 128.6 oa |
| Breadth, m | 16.0 |
| Draught, m | 5.40 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 12M32C diesels |
| Power, h. p. | 16200 |
| Max speed, kts | 20 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 helicopter (Z-9) |
| Electronic equipment | 2 navigation radars |
| Complement | 35 |

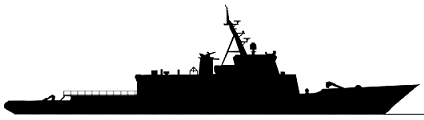

Standard scale images
Haixun 01 2015
Project history
Largest MSA patrol ship. There are helicopter deck and hangar.
Modernizations
None.
Naval service
No significant events.
