PEOPLE`S LIBERATION ARMY NAVY (PEOPLE`S REPUBLIC OF CHINA)

COASTAL FORCES

1101 (project 024) fast attack craft (missile) (1965-1976)

1109 1980

Names

~90 boats: No1101...-; No3100...-

Builders

Wuhu SY

Chuangxin SY

Commissioned

1965 - 1976: ~90 boats

Losses

none

Transfers

Albania, 1976-1977: 4 boats

Pakistan, 1981-1982: 4 boats

Bangladesh, 1983: 4 boats

Egypt, 1984: 6 boats

Discarding

1990s: ~32 boats

early 2000s: ~40 boats





Displacement standard, t

68

Displacement full, t

79

Length, m

27.0

Breadth, m

6.50

Draught, m

1.80

No of shafts

4

Machinery

4 M50F-4 diesels

Power, h. p.

4800

Max speed, kts

37

Fuel, t

diesel oil

Endurance, nm(kts)

500(24)

Armament

2 x 1 Hai Ying-2 SSM (2 HY-2), 1 x 2 - 25/80 type 61

Sensors

type 352 radar

Complement

17

Ship project history: Chinese-built development of the Soviet Project 183R with a steel rather than a wooden hull. The SSM launchers were farther inboard and they had a pole mast. Otherwise they were very similar apart from a slightly modified hull form.

Modernizations: None.

Naval service: No significant events.

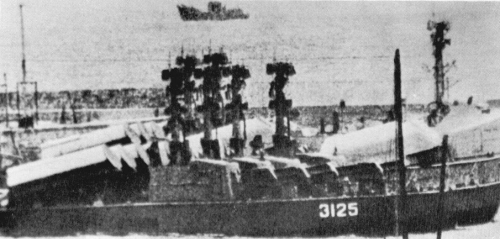

3125 1979

Ivan Gogin, 2015
