No2327 (project 062I) patrol launches (1992-1998)
No1208 2005
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 1101 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1102 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1103 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1104 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1105 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1106 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1107 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1108 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1201 | Giujian SY | 1992-98 | stricken 2016 | ||||
| 1202 | Giujian SY | 1992-98 | stricken 2016 | ||||
| 1203 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1204 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1205 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1206 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1207 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1208 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1231 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1232 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1233 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1234 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1235 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1236 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1237 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1238 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1239 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1240 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1241 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1242 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1243 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1244 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1245 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1271 | Giujian SY | 1992-98 | stricken 2016 | ||||
| 1272 | Giujian SY | 1992-98 | stricken 2016 | ||||
| 1275 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1276 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1277 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1278 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1279 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1280 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1281 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1282 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1301 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1302 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1303 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1304 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1305 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1306 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1307 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1308 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1309 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1310 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1311 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1312 | Giujian SY | 1992-98 | in service (2019) | ||||
| 1313 | Giujian SY | 1992-98 | in service (2019) | ||||
| 2326 | Giujian SY | 1992-98 | in service (2019) | ||||
| 2327 | Giujian SY | 1992-98 | in service (2019) | ||||
| 2328 | Giujian SY | 1992-98 | in service (2019) | ||||
| 2329 | Giujian SY | 1992-98 | in service (2019) | ||||
| 4339 | Giujian SY | 1992-98 | in service (2019) | ||||
| 4340 | Giujian SY | 1992-98 | in service (2019) | ||||
| 4341 | Giujian SY | 1992-98 | in service (2019) | ||||
| 4342 | Giujian SY | 1992-98 | in service (2019) | ||||
| 4343 | Giujian SY | 1992-98 | in service (2019) | ||||
| 4344 | Giujian SY | 1992-98 | in service (2019) | ||||
| 4345 | Giujian SY | 1992-98 | in service (2019) | ||||
| 4346 | Giujian SY | 1992-98 | in service (2019) | ||||
| 4347 | Giujian SY | 1992-98 | in service (2019) | ||||
| 4348 | Giujian SY | 1992-98 | in service (2019) |
Technical data
| Displacement standard, t | 150 |
|---|---|
| Displacement full, t | 170 |
| Length, m | 41.0 |
| Breadth, m | 5.41 |
| Draught, m | 1.80 |
| No of shafts | 4 |
| Machinery | 4 L12-180Z diesels |
| Power, h. p. | 4800 |
| Max speed, kts | 29 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 750(16) |
| Armament | 2 x 2 - 37/63 type 61, 2 x 2 - 25/80 type 81, 2 x 2 - 14.5/93 |
| Electronic equipment | type 726UA or Decca RM2090 radar |
| Complement | 28 |
Standard scale images
No2327 2000
Graphics

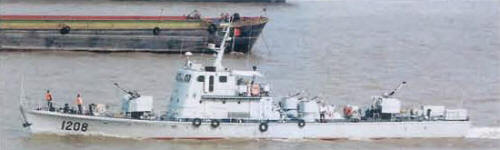

No1208 2005
Project history
Simplified version of Type 062 without ASW abilities but with more powerful diesels and new 37mm guns.
Modernizations
None.
Naval service
No significant events.
