H1 submarines (1915-1916/1917)

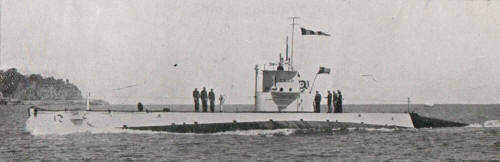

H1 Guacolda 1933

Ships


Name No Yard No Builder Laid down Launched Comp Fate
H1 (ex-H13), 1936- Guacolda 1   Fore River, Quincy, USA 1915 2.7.1915 12.1915 // 7.1917 stricken 1949
H2 (ex-H16), 1936- Tegualda 2   Fore River, Quincy, USA 1915 26.7.1915 12.1915 // 7.1917 stricken 12.1945
H3 (ex-H17), 1936- Rucumilla 3   Fore River, Quincy, USA 1915 26.7.1915 12.1915 // 7.1917 stricken 12.1945
H4 (ex-H18), 1936- Quidora 5   Fore River, Quincy, USA 1915 14.8.1915 1.1916 // 7.1917 stricken 1945
H5 (ex-H19), 1936- Fresia 6   Fore River, Quincy, USA 1915 25.8.1915 1.1916 // 7.1917 stricken 1953
H6 (ex-H20), 1936- Guale 4   Fore River, Quincy, USA 1915 27.8.1915 1.1916 // 7.1917 stricken 1953


Technical data


Displacement standard, t
Displacement normal, t

364 / 434

Length, m

45.8

Breadth, m

4.70

Draught, m

3.80

No of shafts

2

Machinery

2 NLSE diesels / 2 electric motors

Power, h. p.

480 / 620

Max speed, kts

13 / 11

Fuel, t

diesel oil 16

Endurance, nm(kts)1600(10) / 130(2)
Armament

4 - 450 TT (bow, 6)

Complement

22

Diving depth operational, m30


Standard scale images


<i>H1</i> 1917
H1 1917


Graphics


<i>H1 Guacolda </i>1933
H1 Guacolda 1933


Project history

Representatives of numerous series of Holland-designed submarines (similar boats served under USA, British, Italian and Russian flags), built in 1915-1917 in the USA for the Great Britain and transferred by latter to Chile on account of a debt for Chilean ships bought up in the WWI. Submarines were accepted by Chilean crews in the USA 4.7.1917, departured New London 28.3.1918 and arrived to Talcahuano 20.7.1918. In the Chilean service they originally had also numbers H1-6, but to 1930 these numbers were not used any more.     Operational diving depth was 30m, maximal 90m.

Modernizations

None.

Naval service

Rucumilla was foundered as a result of accident at Talcahuano 2.6.1919, but this very day without victims she was salvaged. Quidora became the unique Chilean ship, which have received damages during bombing of Coquimbo by Governmental aircraft 1.9.1931. Chilean submarines have appeared champions among of the same class boats on a life time.
