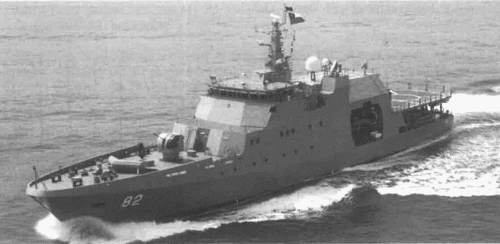

Comandante Policarpo Toro 2009

Ships

Name	No	Builder	Laid down	Launched	Comp	Fate
Piloto Pardo	81	ASMAR, Talcahuano		14.6.2007	13.6.2008	in service (2019)
Comandante Policarpo Toro	82	ASMAR, Talcahuano		15.10.2008	7.8.2009	in service (2019)
Marinero Fuentealba	83	ASMAR, Talcahuano	13.7.2012	12.4.2014	6.11.2014	in service (2019)
Cabo Odger	84	ASMAR, Talcahuano	2.7.2015	3.8.2016	10.8.2017	in service (2019)

Technical data

Displacement standard, t	1500
Displacement full, t	1728
Length, m	74.4 pp 80.6 oa
Breadth, m	13.0
Draught, m	3.80
No of shafts	2
Machinery	2 Wärtsilä 12V26A2 diesels
Power, h. p.	11100
Max speed, kts	21
Fuel, t	diesel oil
Endurance, nm(kts)	8000(12)
Armament	81, 82, 84: 1 x 1 - 40/70 Bofors 315, 6 x 1 - 12.7/90, 1 helicopter (Dauphin) 83: 1 x 1 - 76/62 OTO-Melara Compact, 6 x 1 - 12.7/90, 1 helicopter (Dauphin)
Electronic equipment	surface search, 2x Sperry radars, Maiten e/o system
Complement	34 + 26 passengers

Standard scale images

Graphics

Project history

First two units ordered in 2005 for EEZ patrol, based on Fassmer OPV 80 design by Fassmer Werft shipbuilders, Berne, Germany. Third unit was laid down in 2012 and is with a strengthened hull for light ice breaking and Arctic operations. All have steel hull and superstructure with aluminum pilothouse construction. Fitted with antirolling tank, medium-sized helicopter hangar, and 4t deck crane. Carry two 7.4m Pumar AR740 RIBs under single point davits with boats stowed in superstructure recesses. Employ signature reduction methods to reduce radar cross section.

Modernizations

None.

Naval service

No significant events.
