CONTRAMAESTRE MICALVI patrol vessels (1993-1996)

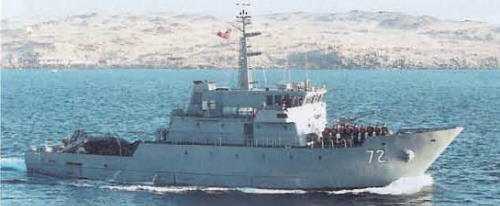

Contramaestre Ortiz 2001

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Contramaestre Micalvi 71   ASMAR, Talcahuano 2.1.1992 12.9.1992 30.3.1993 in service (2019)
Contramaestre Ortiz 72   ASMAR, Talcahuano 28.6.1992 23.7.1993 15.12.1993 in service (2019)
Aspirante Isaza 73   ASMAR, Talcahuano 28.9.1992 7.1.1994 31.5.1994 in service (2019)
Aspirante Morel, 2007- Cirujano Videla 74   ASMAR, Talcahuano 28.12.1992 21.4.1994 11.8.1994 in service (2019)
Corneta Cabrales 77   ASMAR, Talcahuano   4.4.1996 29.6.1996 in service (2019)
Piloto Sibbald 78   ASMAR, Talcahuano   5.6.1996 29.8.1996 in service (2019)


Technical data


Displacement standard, t

483
Displacement full, t

518
Length, m

36.3 pp 42.5 oa
Breadth, m

8.50
Draught, m

2.80
No of shafts

2
Machinery

71-74: 2 Caterpillar 3512TA diesels

77, 78: 2 diesels
Power, h. p.

71-74: 2560

77, 78: 3600
Max speed, kts

71-74: 16

77, 78: 18
Fuel, t

diesel oil 37 + 35 in cargo hold
Endurance, nm(kts)

4200(12)
Armament

1 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 Mk 10
Electronic equipment

2x Decca radars
Complement

27 + 30 passengers


Standard scale images


<i>Contramaestre Micalvi </i>2000
Contramaestre Micalvi 2000


Graphics


<i>Contramaestre Ortiz</i> 2001
Contramaestre Ortiz 2001


Project history

Designed with the assistance of NEVASABU, the Netherlands. Intended for offshore patrol duties, cargo and troop transportation, lighthouse and navigational buoy support, torpedo retrieval, and fisheries protection. May later be upgraded with the provision of a sonar, bow thruster, fin stabilizers and mine rails, but plans to add a mine-countermeasures capability have been canceled. Sisters 75 and 76 were built for potential foreign sales but were instead purchased 1996 for the Direccion General del Territorio Maritimo y de la Marine. Have 70 m³ stores or liquid fuel capacity (35t). Can carry 35m³ freshwater.

Modernizations

1999, Corneta Cabrales: - 2 x 1 - 20/70; + 2 x 1 - 12.7/90, hydrographic survey equipment

Naval service

In April 1999 Corneta Cabrales was fitted to serve as a patrol boat for the hydrographic service (Servicio Hidrografico y Oceanografico de la Armada de Chile, SHOA) and is specifically equipped for these types of activities. Aspirante Morel (later - Cirujano Videla) since 1999 also is used as hospital ship. 77 is classed as PSH (Patrullero de Servicio Hydrografico), others as PSG (Patrullero de Servicio General).
