PILLAN patrol boats (1979-1982)

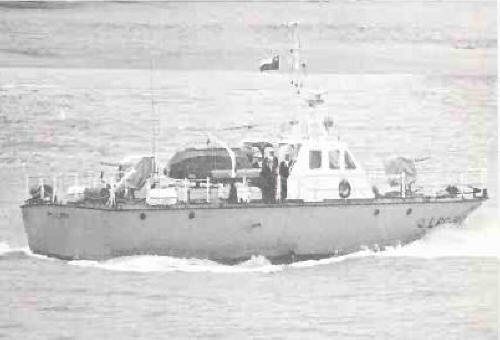

Pillan 1987
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
LPC1801 Pillan LPC1802 Troncador LPC1803 Rano-Kau LPC1804 Villarrica LPC1805 Corcovado LPC1806 Llaina LPC1807 Antuco LPC1808 Osorno LPC1809 Choshuenco LPC1810 Copahue |
MacLaren, Niteroi, Brasil: LPC1801-1810 |
1979: LPC1801 1980: LPC1802-1804 1981: LPC1805, 1806 1982: LPC1807-1810 |
none |
none |
1998: LPC1801, 1802, 1807, 1809 1999: LPC1803, 1805, 1808 2000: LPC1804, 1806 2001: LPC1810 |
Technical data
| Displacement standard, t | 31 |
|---|---|
| Displacement full, t | 43 |
| Length, m | 18.6 |
| Breadth, m | 5.25 |
| Draught, m | 1.62 |
| No of shafts | 2 |
| Machinery | 2 MTU 8V331 TC81 diesels |
| Power, h. p. | 1800 |
| Max speed, kts | 31 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 700(15) |
| Armament | 1 x 1 - 20/70 Mk 4, 1 x 1 - 12.7/90, 2 DCR |
| Electronic equipment | Decca 110 radar |
| Complement | 6 |
Graphics
Pillan 1987
Project history
Wooden construction.
Modernizations
None.
Naval service
No significant events.
