LPM4400 patrol launches (2008-2014)
2008
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
LPM4400-4413 LPM4420-4431 |
Safe Boats International, Port Orchard, USA: LPM4400-4413, 4420-4431 |
2008-2014: LPM4400-4413, 4420-4431 |
none |
none |
in service (2019): LPM4400-4413, 4420-4431 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 13 |
| Length, m | 12.8 |
| Breadth, m | 4.10 |
| Draught, m | 1.00 |
| No of shafts | 2 waterjets |
| Machinery | 2 Caterpillar C9 diesels |
| Power, h. p. | 550 |
| Max speed, kts | 36 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(25) |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno radar |
| Complement | 3 |

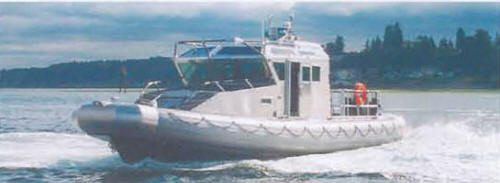

Graphics
2008
Project history
US 42ft Archangel design. Aluminium superstructure with polyethylene rigid foam collar.
Modernizations
None.
Naval service
No significant events.
