ALACALUFE patrol boats (1989)





Alacalufe 2003

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Alacalufe LEP1603, later- LSG1603   ASMAR, Talcahuano     24.6.1989 in service (2019)
Hallef LEP1604, later- LSG1604   ASMAR, Talcahuano     24.6.1989 in service (2019)


Technical data


Displacement standard, t
Displacement full, t

107
Length, m

29.0 wl 32.7 oa
Breadth, m

6.70
Draught, m

2.10
No of shafts

2
Machinery

2 MTU diesels
Power, h. p.

2600
Max speed, kts

22
Fuel, t

diesel oil 20
Endurance, nm(kts)

1100(16)
Armament

1 x 1 - 20/70 Mk 4
Electronic equipment

Decca radar
Complement

14


Graphics

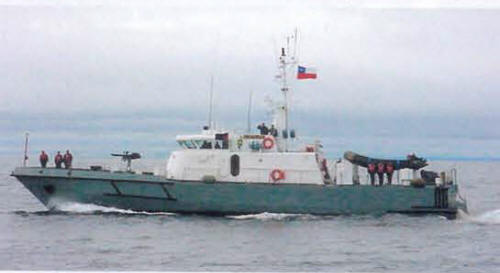

<i>Alacalufe </i>2003
Alacalufe 2003


Project history

UK Protector class. Although initially announced as being intended for the Customs Service and labeled as pilot boats, they were later assigned to patrol and SAR duties.

Modernizations

None.

Naval service

No significant events.
