NAVYPEDIA

Support the project with paypal


HOME
FIGHTING SHIPS OF THE WORLD
BULGARIA
AMPHIBIOUS SHIPS
NO601 small landing ships (1950-1955)





1982

Ships


Name No Yard No Builder Laid down Launched Comp Fate
- 601   Varna SYd     1950-55 discarded 1976?
- 602   Varna SYd     1950-55 discarded 1981-83?
- 201   Varna SYd     1950-55 discarded 1981-83?
- 202   Varna SYd     1950-55 discarded 1981-83?
- 203   Varna SYd     1950-55 discarded 1981-83?
- 204   Varna SYd     1950-55 discarded 1984-88?
- 205, later- 712?   Varna SYd     1950-55 discarded 1991?
- 206, later- 713?   Varna SYd     1950-55 discarded 1991?
- 207, later- 714?   Varna SYd     1950-55 discarded 1991?
- 208, later- 715?   Varna SYd     1950-55 discarded 1991?


Technical data


Displacement standard, t

175

Displacement full, t

240

Length, m

47.0

Breadth, m

8.02

Draught, m

1.30 deep load

No of shafts

3

Machinery

3 3D6 diesels

Power, h. p.

450

Max speed, kts

10.8

Fuel, t

diesel oil

Endurance, nm(kts)

1000(8)

Armament

2 x 1 - 37/73 70K, 60 mines instead of cargo

Military load

150 t of cargo or 3 tanks or 160 troops

Complement

27



Standard scale images

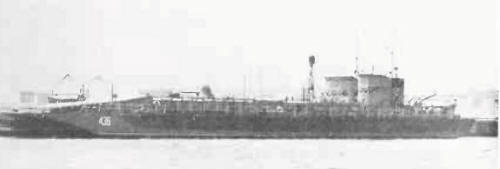

<i>No601 </i>1955
No601 1955


Graphics


1982
1982


Project history

4 ships were built in Bulgaria on base of scuttled incomplete hulls of German MFP type landing barges but modified for use of Soviet diesels and armament. 6 ships were built fully new. All were several times renumbered.

Modernizations

None.

Naval service

No significant events.
