HUMAITÁ submarine (1929)

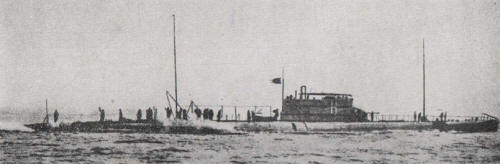

Humaitá 1929

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Humaitá     OTO, Livorno, Italy 11/1925 11.6.1927 7/1929 stricken 11.1950


Technical data


Displacement standard, t



Displacement normal, t1450 / 1884
Length, m

86.7

Breadth, m

7.77

Draught, m

4.26

No of shafts

2

Machinery

2 Ansaldo diesels / 2 Savigliano electric motors

Power, h. p.

4000 / 1000

Max speed, kts

18.5 / 10

Fuel, tdiesel oil
Endurance, nm(kts)12840(10)/ 120(4)
Armament

1 x 1 - 120/41 Ansaldo, 2 x 1 - 13.2/76, 6 - 533 TT (4 bow, 2 stern, 12), 16 mines

Complement

61

Diving depth operational, m100


Standard scale images


<i>Humaitá</i> 1930
Humaitá 1930


Graphics


<i>Humait</i><i>á</i> 1929
Humaitá 1929


Project history

Submarine cruiser, ordered in 1925 on the means obtained from sale of battleship Deodoro to Mexico. Improved variant of Italian Balilla class. Twin-hulled. For endurance increase two 425hp Fiat auxiliary diesels-generators were installed for battery recharging. Submarine was arranged by folding bow diving planes. Besides torpedoes, Humaitá carried 16 Ansaldo mines, placing in two horizontal tubes at aft end. 120mm/41 gun originally took place in rotating turret in front of a fin, but soon after commission was rearranged to deck. Building of Humaitá has been ended in the late 1927, but submarine was remained on the shipyard on one and a half year because of a protraction of ultimate payment by Brazilian party.

Modernizations

None.

Naval service

No significant events.
