REPÚBLICA protected cruiser (1894)





República

Ships


Name No Yard No Builder Laid down Launched Comp Fate
República (ex-Quinze de Novembro, ex-República)     Armstrong, Elswick, UK   26.5.1892 9.1894 disarmed 1920


Technical data


Displacement normal, t

1300

Displacement full, t
Length, m

64.0 pp

Breadth, m

10.7

Draught, m

3.89 mean

No of shafts

2

Machinery

2 HTE, cylindrical boilers

Power, h. p.3800
Max speed, kts

17.4

Fuel, t

coal 170

Endurance, nm(kts)
Armour, mmsteel; deck: 25 with 51mm slopes
Armament

6 x 1 - 120/40 Armstrong T, 4 x 1 - 57/40 6pdr Hotchkiss, 1 - 356 TT (bow), 2 x 1 - 356 TT

Complement

160



Standard scale images


<i>República</i>
República


Graphics


<i>República</i>
República

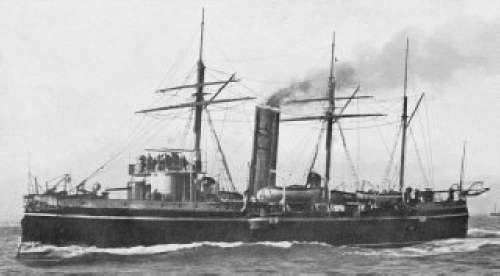

<i>República</i>
República


Project history

A steel-hulled protected cruiser with a raised forecastle and poop and a tall, raked funnel. With normal draught she made 16kts on 2600ihp. She was renamed Quinze de Novembro, but reverted to República in 1894 and was later refitted as a minelayer. Two 120mm Armstrong QF guns were mounted fore and aft and the other four were at the break of the poop and forecastle. There was one fixed bow TT and the other two were on the main deck amidships.

Ship protection

machinery was protected by the deck with 25mm flat and 51mm slopes.

Modernizations

None.

Naval service

No significant events.
