GRAJAÚ large patrol craft (1993-2000)

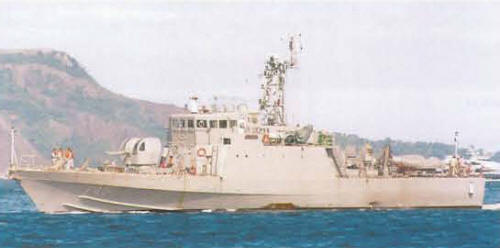

Guaporé 2006

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Grajaú P40   Arsenal de Marinha, Rio de Janeiro   21.5.1993 1.12.1993 in service (2019)
Guaíba P41   Arsenal de Marinha, Rio de Janeiro   10.12.1993 12.9.1994 in service (2019)
Graúna P42   Mauá, Rio de Janeiro // Arsenal de Marinha, Rio de Janeiro   10.11.1993 14.8.1994 in service (2019)
Goiana P43   Mauá, Rio de Janeiro // Arsenal de Marinha, Rio de Janeiro   26.1.1994 26.2.1997 in service (2019)
Guajará P44   Peenewerft, Wolgast, Germany   24.10.1994 28.4.1995 in service (2019)
Guaporé P45   Peenewerft, Wolgast, Germany   23.1.1995 29.8.1995 in service (2019)
Gurupá P46   Peenewerft, Wolgast, Germany   11.5.1995 8.12.1995 in service (2019)
Gurupi P47   Peenewerft, Wolgast, Germany   6.9.1995 23/41996 in service (2019)
Guanabara P48   INACE, Ceará 22.4.1996 5.11.1997 9.7.1999 in service (2019)
Guarujá P49   INACE, Ceará 22.4.1996 24.4.1998 25.11.1999 in service (2019)
Guaratuba P50   Peenewerft, Wolgast, Germany   16.6.1999 1.12.1999 in service (2019)
Gravataí P51   Peenewerft, Wolgast, Germany   26.8.1999 17.2.2000 in service (2019)


Technical data


Displacement standard, t213
Displacement full, t

263
Length, m

42.5 pp 46.5 oa
Breadth, m

7.50
Draught, m

2.72
No of shafts

2
Machinery

2 MTU 16V396 TB94 diesels
Power, h. p.

5560
Max speed, kts

24
Fuel, t

diesel oil 23
Endurance, nm(kts)2200(12)
Armament

1 x 1 - 40/70 Bofors 350, 2 x 1 - 20/90 GAM-B01
Electronic equipment

Decca 1290A, Furuno M1954C radars
Complement

31


Standard scale images


<i>Grajaú </i>2000
Grajaú 2000


Graphics


<i>Guaporé </i>2006
Guaporé 2006


Project history

The first pair was ordered late 1987 to a design by Vosper QAF, Singapore, with actual work beginning late in 1988. The second pair was ordered in 1990 and the third pair in 1993. The fourth pair was ordered in 1994 and paid for from profits from the state-owned Petrobras oil company. The original contract with Estaleiros Maua for P 42 and P 43 was canceled in 1992 due to slow progress, and the craft ordered there were fitted out at the Arsenal de Marinha. The craft have been renumbered to reflect the delivery sequence; P 42 and P 43 were originally to have been P 40 and P 41. Have a 10-person-capacity rigid inflatable inspection boat on the stern, handled by a telescoping electrohydraulic crane.

Modernizations

None.

Naval service

No significant events.
