CASTOR patrol ships (2014-2015)

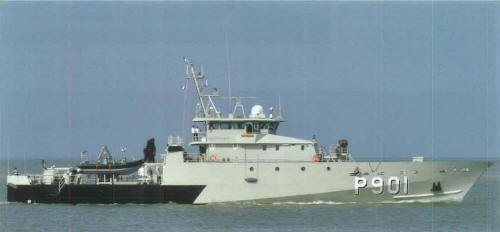

Castor 2014
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Castor | P901 | SOCARENAM, Boulogne-sur-Mer, France | 2013 | 14.4.2014 | 10.7.2014 | in service (2019) | |
| Pollux | P902 | SOCARENAM, Boulogne-sur-Mer, France | 12.2012 | 10.2014 | 6.5.2015 | in service (2019) |
Technical data
| Displacement standard, t | 448 |
|---|---|
| Displacement full, t | 500 |
| Length, m | 53.5 |
| Breadth, m | 9.50 |
| Draught, m | 3.20 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V4000 diesels |
| Power, h. p. | 7835 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(10) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | 2x nav. radars, e/o IR system, SEWACO simplified CCS |
| Complement | 12 + 18 passengers |
Standard scale images
Castor 2015
Graphics
Castor 2014
Project history
Enlarged version of patrol craft Jacques Oudart Fourmentin serving in the French Customs. Ordered in December 2012 as replacement for salvage ship A963 Stern and coastal tug A996 Albatros and A950 Valcke. Steel hull and aluminium superstructure. Each ship carries 2 fast 37kts inspection RIBs. Abbreviature RDS means Ready Duty Ship.
Modernizations
None.
Naval service
No significant events.
