FIGHTING SHIPS OF THE WORLD
BARBADOS
COAST GUARD
LEONARD C. BANFIELD patrol craft (2007-2009)
Rudyard Lewis 2010
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Trident | P01 | Damen, Gorinchem, Netherlands | 25.4.2009 | in service (2020) | |||
| Leonard C. Banfield | P02 | Damen, Gorinchem, Netherlands | 14.9.2007 | in service (2020) | |||
| Rudyard Lewis | P03 | Damen, Gorinchem, Netherlands | 13.9.2008 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 200 |
| Length, m | 40.0 pp 42.8 oa |
| Breadth, m | 7.11 |
| Draught, m | 2.52 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3516B DITA diesels |
| Power, h. p. | 5600 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(12) |
| Armament | 2 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | 2x JRC radar |
| Complement | 14 |
Standard scale images
Leonard C. Banfield 2010
Graphics

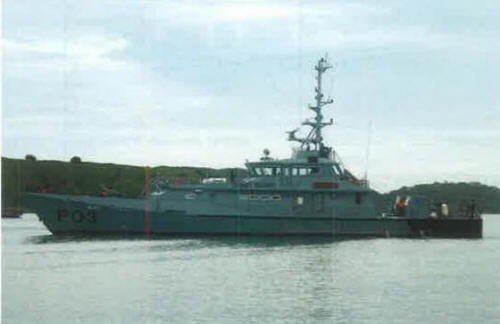

Rudyard Lewis 2010
Project history
Damen Stan Patrol 4207 design. Steel hull with alumininum superstructure. Equipped with watercanon.
Modernizations
None.
Naval service
No significant events.
