SAGAR ocean minesweeper (1995)

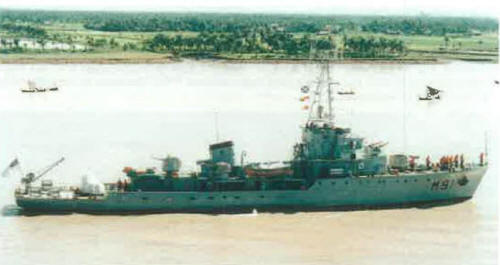

Sagar 1998
Ships
Name |
No |
Yard No | Builder |
Laid down |
Launched |
Comp |
Fate |
|---|---|---|---|---|---|---|---|
সাগর [Sagar] |
M91 |
Guangzhou SY, China | 27.4.1995 | in service (2020) |
Technical data
| Displacement standard, t | 500 |
|---|---|
| Displacement full, t | 600 |
| Length, m | 60.0 |
| Breadth, m | 8.60 |
| Draught, m | 2.60 |
| No of shafts | 2 |
| Machinery | 2 9D diesels |
| Power, h. p. | 2200 |
| Max speed, kts | 14 |
| Fuel, t | diesel oil 70 |
| Endurance, nm(kts) | 3200(10) |
| Armament | 2 x 2 - 37/63 type 61, 2 x 2 - 25/80 type 61, 2 x 2 - 14.5/93, 2 DCT, 16 - 12 mines, MT-2 mechanical, TEM-52 magnetic, 2 BAT-2 acoustic minesweeping gear |
| Electronic equipment | type 756 radar, Tamir-11 sonar |
| Complement | 70 |
Standard scale images
Sagar 2000
Graphics
Sagar 1998
Project history
Chinese modified project 010 minesweeper.
Modernizations
1997: - Tamir-11 sonar; + CMAS-36/39 sonar
Naval service
No significant events.
