LCVP011 landing craft (1984)





L011 1996

Ships


Names Builders Commissioned Losses Transfers Discarding

L011 - 013

Khulna SY: L011, 012

DEW Narayanganj, Dakha: L013

1984: L011-013

none

none

in service (2020): L011-013



Technical data


Displacement standard, t
Displacement full, t

83

Length, m

21.3

Breadth, m

5.20

Draught, m

1.50

No of shafts

2

Machinery

2 Cummins diesels

Power, h. p.

730

Max speed, kts

12

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

none

Military load

cargo, troops

Electronic equipmentnone
Complement10


Graphics

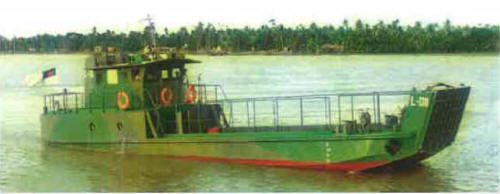

<i>L011 </i>1996
L011 1996


Project history

Small LCMs.

Modernizations

None.

Naval service

No significant events.
