OSMAN frigate (1987/1989)

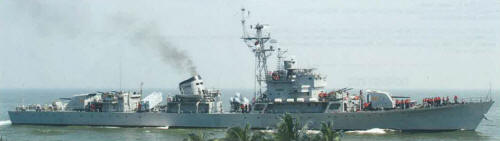

Osman 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ওসমান [Osman] (ex-湘潭 [Xiangtan]) | F18 | Huangpu SY, Guangzhou, China | 14.7.1987 | 20.12.1987 // 26.9.1989 | in service (2020) |
Technical data
| Displacement standard, t | 1425 |
|---|---|
| Displacement full, t | 1700 |
| Length, m | 103.2 |
| Breadth, m | 10.2 |
| Draught, m | 3.10 |
| No of shafts | 2 |
| Machinery | 2 SEMT-Pielstick 12PA6 280BTC diesels |
| Power, h. p. | 16000 |
| Max speed, kts | 25.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 4000(15) |
| Armament | 2 x 2 Hai Ying-2A SSM (4 C-201A), 2 x 2 - 100/56 type 79, 4 x 2 - 37/63 type 76, 2 x 5 type 81 ASWRL, 4 DCT, 2 DCR, mines |
| Electronic equipment | 3x type 756, type 354, type 352C, type 343, type 341 radars, SJD-5 sonar, type 931-1 ECM suite, 2x Mk 36 SRBOC decoy RL, ZKJ-3 CCS |
| Complement | 200 |
Standard scale images

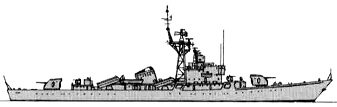

Osman 2000
Graphics
Osman 2011
Project history
Former Chinese type 053H1 frigate.
Modernizations
2008: - 2 x 2 Hai Ying-2A SSM; + 2 x 4 Ying Ji-83 SSM (8 C-802)
Naval service
Osman was badly damaged in August 1991 in collision with cargo vessel.
