KARNAPHULI patrol craft (1954-1955/1975)
Tista 1999
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| কর্ণফুলী [Karhaphuli] (ex-ПБР502 [PBR502]) | P314 | 318 | Tito SYd, Kraljevica, Yugoslavia | 1954 // 6.6.1975 | in service (2020) | ||
| তিস্তা [Tista] (ex-ПБР505 [PBR505]) | P315 | 322 | Tito SYd, Kraljevica, Yugoslavia | 1955 // 6.6.1975 | in service (2020) |
Technical data
| Displacement standard, t | 195 |
|---|---|
| Displacement full, t | 220 |
| Length, m | 41.0 |
| Breadth, m | 6.30 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 MAN W8V30/38 diesels |
| Power, h. p. | 3300 |
| Max speed, kts | 17 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1000(12) |
| Armament | 2 x 1 - 40/60 Mk 3, 4 x 1 - 20/70 Mk 10, 2 x 5 RBU-1200 ASWRL, 2 DCT, 2 DCR |
| Electronic equipment | Decca 45 radar, QCU-2 sonar |
| Complement | 45 |
Standard scale images
Karnaphuli 1975
Graphics

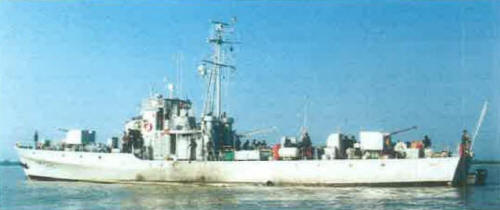

Tista 1999
Project history
Former Yugoslavian Kraljevica-class patrol boats.
Modernizations
1995, Karnaphuli; 1998, Tista: diesel were replaced by 2 Paxman 12VP185 (7000hp, 24kts); - Decca 45 radar; + Decca 1229 radar
Naval service
No significant events.
