Bangabandhu 2012

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
বঙ্গবন্ধু [Bangabandhu], 7.2007- খালিদ বিন ওয়ালিদ [Khalid Bin Walid], 2009- বঙ্গবন্ধু [Bangabandhu]	F25		Daewoo, Okpo, South Korea	12.5.1999	29.8.2000	20.6.2001	in service (2020)

Technical data

Displacement standard, t	2170
Displacement full, t	2370
Length, m	103.7
Breadth, m	12.5
Draught, m	3.80
No of shafts	2
Machinery	4 SEMT-Pielstick 12PA6 V280STC diesels
Power, h. p.	22500
Max speed, kts	26
Fuel, t	diesel oil
Endurance, nm(kts)	4000(18)
Armament	2 x 2 Otomat Mk 2 Block IV SSM (4 Otomat Mk 2 Block IV), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 2 - 40/70 Vespa, 2 x 1 - 12.7/90, 2 x 3 - 324 B515 TT (A244), 1 helicopter (A-109 Power)
Electronic equipment	DA-08, Variant, 2x type 1007, LIROD Mk 2 radars, Mirador e/o system, ASO90 sonar, Cutlass 242, Scorpion ECM suites, 2x SuperBarricade decoy RL, TACTICOS CCS
Complement	196

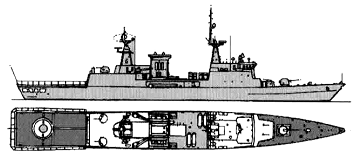

Standard scale images

Graphics

Project history

DW2000H design, ordered in 1997. Development of Ulsan class.

Modernizations

2011: + 1 x 8 FM-90 SAM (8 HQ-7A)

Naval service

Bangabandhu was decommissioned in February 2002 for repairs as result of numerous defects in the machinery and combat systems and returned to service only in July 2007.
