Ali Haider 2001 Many thanks to Shafkat Shamim Rahman for correction of information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
আবু বকর [Abu Bakr] (ex-Lynx)	F15	679	John Brown, Clydebank, UK	13.8.1953	12.1.1955	14.3.1957 // 12.3.1982	stricken 1.2014

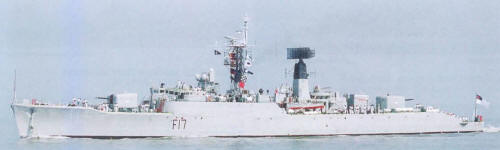

আলী হায়দার [Ali Haider] (ex-Jaguar)	F17	1476	Denny, Dumbarton, UK	2.11.1953	20.7.1957	12.12.1959 // 6.7.1978	stricken 1.2014

Technical data

Displacement standard, t	2300
Displacement full, t	2520
Length, m	100.6 pp 103.6 oa
Breadth, m	12.2
Draught, m	3.60
No of shafts	2
Machinery	8 16VVS ASR1 diesels
Power, h. p.	14400
Max speed, kts	25
Fuel, t	diesel oil 230
Endurance, nm(kts)	7500(16)
Armament	2 x 2 - 120/45 Mk 6, 1 x 1 - 40/60 Mk 7, 2 x 1 - 20/70 Mk 4
Electronic equipment	type 275, type 965 AKE-1, type 974, type 993 radars, UA-4 ECM suite
Complement	235

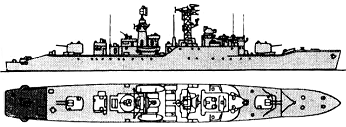

Standard scale images

Graphics

Project history

Former RN Leopard class frigates, transferred after removing of all ASW equipment.

Modernizations

None.

Naval service

No significant events.
