SHET GANG patrol boats (2006)
Porte Grande 2012
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P101 সেট গ্যাং [Shet Gang] P102 পড়তে গ্রান্দে [Porte Grande] |
Ananda, Khulna: P101, 102 |
2006: P101, 102 |
none |
none |
in service (2020): P101, 102 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 81 |
| Length, m | 31.2 |
| Breadth, m | 5.20 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 3000 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Furuno radar |
| Complement | 27 |
Graphics

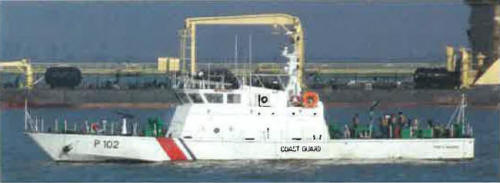

Porte Grande 2012
Project history
Coast Guard.
Modernizations
None.
Naval service
No significant events.
