TITAS patrol boats (1978/2000-2004)

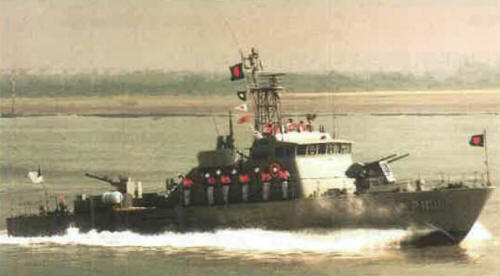

Titas 2001
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| তিতাস [Titas] (ex-기러기 217 [Gireogi 217])? | P1011 | Korea Tacoma, Chinhae, South Korea | 11.12.1978? // 27.5.2000 | in service (2020) | |||
| কুশিয়ারা [Kusiyara] (ex-기러기 213 [Gireogi 213]) | P1012 | Korea Tacoma, Chinhae, South Korea | 8.5.1978 // 27.5.2000 | in service (2020) | |||
| চিত্র [Chitra] (ex-기러기 218 [Gireogi 218])? | P1013 | Korea Tacoma, Chinhae, South Korea | 11.12.1978? // 3.10.2004 | in service (2020) | |||
| ধানসিঁড়ি [Dhansiri] (ex-기러기 219 [Gireogi 219])? | P1014 | Korea Tacoma, Chinhae, South Korea | 20.11.1978? // 3.10.2004 | in service (2020) |
Technical data
| Displacement standard, t | 113 |
|---|---|
| Displacement full, t | 144 |
| Length, m | 31.3 pp 32.9 oa |
| Breadth, m | 6.92 |
| Draught, m | 1.75 hull 2.45 propellers |
| No of shafts | 2 |
| Machinery | 2 MTU 16V538 TB90 diesels |
| Power, h. p. | 10800 |
| Max speed, kts | 34 |
| Fuel, t | diesel oil 15 |
| Endurance, nm(kts) | 1000(20) |
| Armament | 1 x 1 - 40/60 Mk 3, 1 x 2 - 30/75 Emerlec EX-30, 2 x 1 - 20/70 Mk 10 |
| Electronic equipment | Raytheon 1645 radar |
| Complement | 31 |
Standard scale images
Titas 2000
Graphics
Titas 2001
Project history
Former South Korean 'Sea Dolphin' class boats.
Modernizations
None.
Naval service
No significant events.
