PADMA patrol craft (2013-)
Padma 2013
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| পদ্মা [Padma] | P312 | Khulna SYd | 5.3.2011 | 8.10.2012 | 24.1.2013 | in service (2020) | |
| সুরমা [Surma] | P313 | Khulna SYd | 5.3.2011 | 23.1.2013 | 6.5.2013 | in service (2020) | |
| অপরাজেয় [Aparajeya] | P261 | Khulna SYd | 5.3.2011 | 23.6.2013 | 16.12.2013 | in service (2020) | |
| অদম্য [Adamya] | P262 | Khulna SYd | 5.3.2011 | 8.9.2013 | 16.12.2013 | in service (2020) | |
| তন্দ্রা [Atandra] | P263 | Khulna SYd | 5.3.2011 | 2013 | 16.12.2013 | in service (2020) | |
| vi | Khulna SYd | 2.12.2019 | 2021 | 2021 | building (2020) | ||
| vii | Khulna SYd | 2.12.2019 | 2021 | 2021 | building (2020) | ||
| vii | Khulna SYd | 2.12.2019 | 2021 | 2021 | building (2020) | ||
| ix | Khulna SYd | 2.12.2019 | 2021 | 2021 | building (2020) | ||
| x | Khulna SYd | 2.12.2019 | 2021 | 2021 | building (2020) |
Technical data
| Displacement standard, t | 255 |
|---|---|
| Displacement full, t | 270 |
| Length, m | 50.4 pp 54.0 oa |
| Breadth, m | 7.50 |
| Draught, m | 1.90 |
| No of shafts | 2 |
| Machinery | 4 Deutz TBD620V8 diesels |
| Power, h. p. | 6265 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 2 - 37/63 type 76, 2 x 1 - 20/70 Mk 4 |
| Electronic equipment | radar |
| Complement | 31 |
Graphics

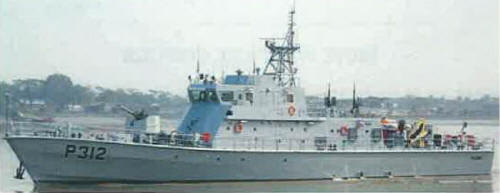

Padma 2013
Project history
Patrol craft built in collaboration with Shnghai Hudong shipyard by Chinese design. First batch was ordered in 2010, the second in 2019. Operate for the Ministry of Agriculture by the navy for 200nm EEZ patrol and fishery protection duties.
Modernizations
None.
Naval service
No significant events.
