DURJOY patrol craft (1964-1982/1982-1985)
Nirbhoy 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| দুর্জয় [Durjoy] (ex-...) | P811 | Huangpu SY, Guangzhou, China or Qiuxin SY, Jiangnan, China | 1964-82 // 10.9.1982 | damaged 1995, never repaired | |||
| নির্ভয় [Nirbhoy] (ex-...) | P812 | Huangpu SY, Guangzhou, China or Qiuxin SY, Jiangnan, China | 1964-82 // 1.12.1985 | in service (2020) |
Technical data
| Displacement standard, t | 395 |
|---|---|
| Displacement full, t | 430 |
| Length, m | 58.8 |
| Breadth, m | 7.20 |
| Draught, m | 2.24 hull |
| No of shafts | 4 |
| Machinery | 4 diesels |
| Power, h. p. | 8800 |
| Max speed, kts | 30.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(14) |
| Armament | 2 x 2 - 57/62 type 66, 2 x 2 - 25/80 type 61M, 4 x 5 type 81 ASWRL, 2 DCT, 2 DCR, mines |
| Electronic equipment | type 351 radar, Tamir-11 sonar |
| Complement | 78 |
Standard scale images

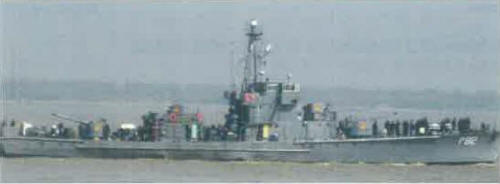

Nirbhoy 2000
Graphics
Nirbhoy 2011
Project history
Former Chinese project 037 patrol craft.
Modernizations
None.
Naval service
Both were damaged by cyclone in April 1991 but later repaired. In 1995 Durjoy was damaged again, her repair was never been.
