BAHRAIN
AMPHIBIOUS SHIPS AND CRAFT
SABHA landing craft (1981)
Al Zubara 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| صبحى [Sabha], 1990s- الزبارة [Al Zubara] | 40 | Fairey Marine, Cowes, UK | 1981 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 150 |
| Length, m | 22.5 |
| Breadth, m | 7.50 |
| Draught, m | 1.20 |
| No of shafts | 2 |
| Machinery | 2 General Motors 8V92N diesels |
| Power, h. p. | 780 |
| Max speed, kts | 8 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500 |
| Armament | none |
| Military load | cargo |
| Electronic equipment | radar |
| Complement | 6 |
Graphics

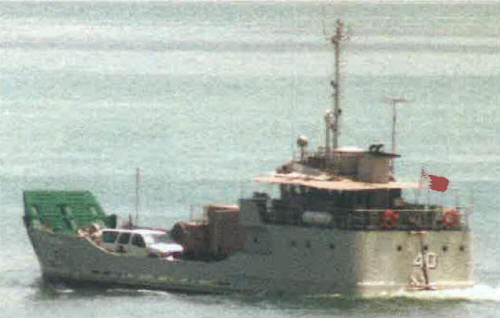

Al Zubara 2003
Project history
Loadmaster II class.
Modernizations
None.
Naval service
No significant events.
