FIGHTING SHIPS OF THE WORLD
BAHRAIN
NON-NAVAL FORCES
DERA'A 4 patrol boats (1985)
Dera'a 4 2009
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
4, 5 درءا [Dera'a 4, 5] |
Souter, Cowes, UK: Dera'a 4, 5 |
1985: Dera'a 4, 5 |
none |
none |
in service (2020): Dera'a 4, 5 |
Technical data
| Displacement standard, t | 34 |
|---|---|
| Displacement full, t | 36 |
| Length, m | 16.0 pp 20.0 oa |
| Breadth, m | 5.00 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 12V71TI diesels |
| Power, h. p. | 1200 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | Decca radar |
| Complement | 8 |
Graphics

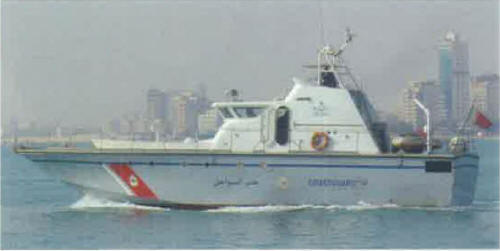

Dera'a 4 2009
DERA'A 4 patrol boats (1985)
Project history
Coast Guard. 20m Wasp class. GRP hull.
Modernizations
None.
Naval service
No significant events.
