AL MUHARRAQ patrol boat (1985)
Al Muharraq 2003
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| المحرق [Al Muharraq] | Souter, Cowes, UK | 15.11.1984 | 12.8.1985 | in service (2020) |
Technical data
| Displacement standard, t | 90 |
|---|---|
| Displacement full, t | 105 |
| Length, m | 26.7 pp 30.0 oa |
| Breadth, m | 6.40 |
| Draught, m | 1.60 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 16V149TI diesels |
| Power, h. p. | 3100 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil 17 |
| Endurance, nm(kts) | 1000(12) |
| Armament | 3 x 1 - 7.6/90 |
| Electronic equipment | Decca radar |
| Complement | 16 |
Graphics

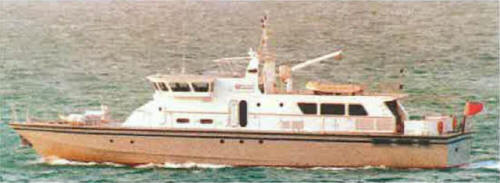

Al Muharraq 2003
AL MUHARRAQ patrol boat (1985)
Project history
Coast Guard. 30m Wasp class. GRP hull. Outfitted as a yacht.
Modernizations
None.
Naval service
No significant events.
