M324 coastal minesweepers (1980-1983/1992)

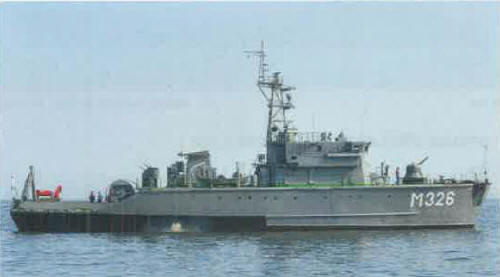

M326 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| (ex-БТ-55 [BT-55], ex- Мангышлакский комсомолец [Mangyshlakskiy Komsomolets], ex- БТ-55 [BT-55]) | M324 | 130 | Avangard, Petrozavodsk, USSR | 17.11.1981 | 9.11.1982 | 29.6.1983 // 3.7.1992 | stricken ~2015 |
| (ex-БТ-16 [BT-16], ex- Астраханский комсомолец [Astrakhanskiy Komsomolets], ex- БТ-16 [BT-16]) | M325 | 122 | Avangard, Petrozavodsk, USSR | 19.6.1979 | 29.5.1980 | 31.12.1980 // 3.7.1992 | in service (2020) |
| (ex-БТ-103 [BT-103]) | M326 | Avangard, Petrozavodsk, USSR | 2/1981 // 3.7.1992 | in service (2020) |
Technical data
| Displacement standard, t | 427 |
|---|---|
| Displacement full, t | 460 |
| Length, m | 49.0 |
| Breadth, m | 8.80 |
| Draught, m | 2.45 |
| No of shafts | 2 |
| Machinery | 2 DRA-210B diesels |
| Power, h. p. | 2000 |
| Max speed, kts | 14 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1500(10) |
| Armament | 1 x 4 Strela-3 SAM (16 9M36), 1 x 2 - 30/71 AK-230M, 1 x 2 - 25/82 2M-3M, 6 mines, GKT-2 mechanical, AT-6 acoustic or PEMT-4 magnetic, AT-6 acoustic or ST-2 magnetic, AT-6 acoustic or TS-1 mechanical minesweeping gear or KIU-1 USV or 2x 200m mine clearance line charges |
| Electronic equipment | Mius, Don-2 or MR-212/201 Vaygach-U radars, MG-69 Lan', MG-79 Mezen', MG-7 Braslet sonars |
| Complement | 45 |
Standard scale images
M325 1992
Graphics
M326 2012
Project history
Former Soviet project 1265 coastal minesweepers.
Modernizations
None.
Naval service
No significant events.
