D433 small landing ship (1969/1992)

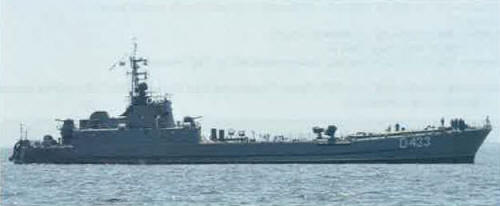

D433 2012

Ships


Name No Yard No Builder Laid down Launched Comp Fate
(ex-МДК-107 [MDK-107], ex-СДК-107 [SDK-107]) D433 771A/20 Stocznia Północna, Gdańsk, Poland 16.2.1968 22.10.1968 28.2.1969 // 3.7.1992 in service (2020)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate (ex-МДК-107 [MDK-107], ex-СДК-107 [SDK-107]) D433 771A/20 Stocznia Północna, Gdańsk, Poland 16.2.1968 22.10.1968 28.2.1969 // 3.7.1992 in service (2020)

Technical data


Displacement standard, t

805
Displacement full, t

857
Length, m

75.2
Breadth, m

9.02
Draught, m

2.07
No of shafts

2
Machinery

2 40DM diesels
Power, h. p.

4400
Max speed, kts

18.4
Fuel, t

diesel oil
Endurance, nm(kts)

2000(16)
Armament

2 x 2 - 30/71 AK-230, 2 x 18 - 140 WM-18 RL
Military load

6 medium tanks or 10 trucks, 204 troops
Electronic equipment

Donets-2, MR-104 Rys' radars
Complement

37


Standard scale images


<i>D433 </i>1992
D433 1992


Graphics


<i>D433 </i>2012
D433 2012


Project history

Former Soviet project 771A medium (later small) landing ship.

Modernizations

None.

Naval service

No significant events.
