S14 patrol boat (1970/2003)

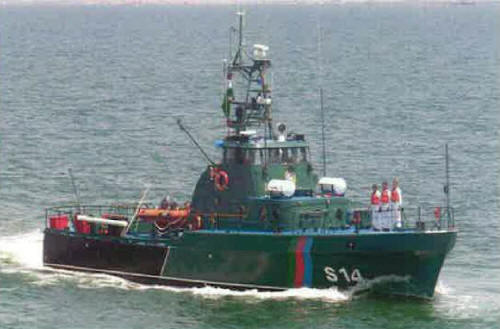

S14 2008
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
S14 (ex-Point Brower) |
USCG Yard, Curtis Bay, USA: S14 |
1970 // 2003: S14 |
none |
None |
in service (2020): S14 |
Technical data
| Displacement standard, t | 64 |
|---|---|
| Displacement full, t | 69 |
| Length, m | 25.3 |
| Breadth, m | 5.25 |
| Draught, m | 1.80 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3412 V12 diesels |
| Power, h. p. | 1600 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(8) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | SPS-64(v)1 radar |
| Complement | 8 |
Standard scale images
S14 2003
Graphics
S14 2008
Project history
Coast Guard. Former USCG Point-class cutter.
Modernizations
None.
Naval service
No significant events.
