S11 patrol launch (2001)
S11 and S12 2008
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
S11, 12 |
Silver Ships, Theodore, USA: S11, 12 |
2001: S11, 12 |
none |
None |
in service (2020): S11, 12 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 13 |
| Length, m | 14.6 |
| Breadth, m | 3.70 |
| Draught, m | 1.10 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3196D diesels |
| Power, h. p. | 1140 |
| Max speed, kts | 40 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 385(36) |
| Armament | small arms |
| Electronic equipment | radar |
| Complement | 6 |
Graphics

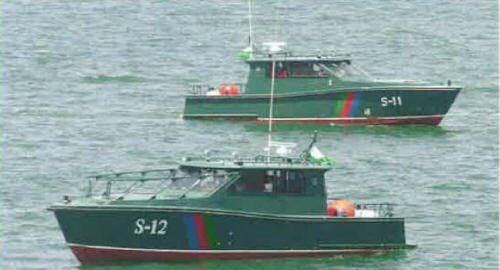

S11 and S12 2008
Project history
Coast Guard.
Modernizations
None.
Naval service
No significant events.
