No 628 patrol craft (1966/1992)
S008 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| (ex-Р-173 [R-173]) | 628, 2004- S008, 2015- G126 | 474 | Primorskiy Yd, Leningrad, USSR | 1966 // 3.7.1992 | Navy 7.2015, in service (2020) |
Technical data
| Displacement standard, t | 192 |
|---|---|
| Displacement full, t | 235 |
| Length, m | 38.6 |
| Breadth, m | 7.60 |
| Draught, m | 1.84 |
| No of shafts | 3 |
| Machinery | 3 M-504B diesels |
| Power, h. p. | 15000 |
| Max speed, kts | 42 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(14) |
| Armament | 2 x 2 - 30/71 AK-230 |
| Electronic equipment | MR-101 Rangout, MR-104 Rys' radars |
| Complement | 28 |
Standard scale images
No 628 1992
Graphics

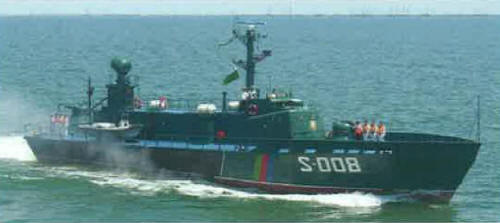

S008 2008
Project history
Former Soviet project 205U fast attack craft (missile). Useless obsolete missiles were removed just after transfer. Coast Guard.
Modernizations
None.
Naval service
No significant events.
